Our EasySyn 2000 Starter package comprises a complete reactor system for use in the laboratory. The high quality of the used materials allows operation at temperatures from -50 to 200 ðC and up to a negative pressure of 3 mbar.
EasySyn 2000 Starter includes:
Further reactor vessels (with and without bottom discharge), reactor covers, stirring tools, temperature sensors, circualtors, laboratory automation and much more can be found in the section "Accessories".
To complete your system, you get all the complementary components from a single source: overhead stirrers, circulators, vacuum pumps and controllers, sensors and automation software. All from IKA and all perfectly matched to each other.
Would you like your own desired configuration? Or do you need an offer? You are welcome to contact our sales team.
Note: The scope of delivery does not include temperature hoses for connecting a thermostat.
Free Shipping
EasySyn 2000 Starter Reactor system
Vendor:
IKA
SKU:
20113438
Availability:
In Stock
Product Type:
Synthesis Reactors
- $10,216.80 USD
- $10,216.80 USD
- Unit price
- per
Subtotal:
$10,216.80
Estimated Delivery
Jan 25 - Feb 01
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $50
Free Returns
Authorized distributor
Products Specifications
x| Volume | 2 l |
| Flange dimension | DN150 |
| Vacuum application | yes |
| Working temperature | -50 - 200 ðC |
| Useable volume min. | 120 ml |
| Useable volume with temperature probe min. | 400 ml |
| Attainable vacuum | 3 mbar |
| Torque max. at stirring shaft | 60 Ncm |
| Dimensions (W x H x D) | 500 x 950 x 580 mm |
Overview
xEasySyn 2000 Starter Reactor system

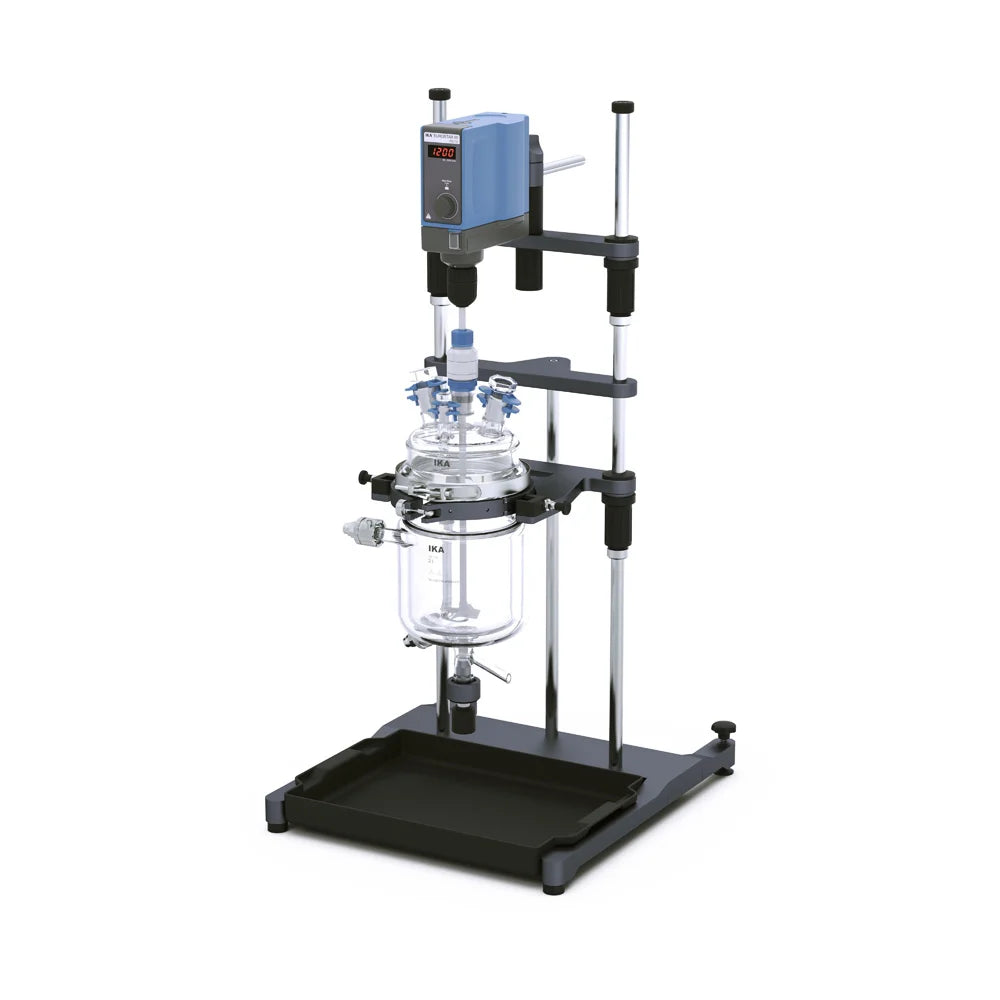

EasySyn is the reactor system for organic or aqueous syntheses. It ensures safe and reproducible chemical reactions on the way from laboratory to pilot scale.Our EasySyn 2000 Starter package comprises a complete reactor system for use in the laboratory. The high quality of the used materials allows operation at temperatures from -50 to 200 ðC and up to a negative pressure of 3 mbar.
EasySyn 2000 Starter includes:
- Ergonomically designed stand system for quick and easy exchange of reactor vessels and adjustment of the working height to your body size.
- DN 150 vessel clamp for mounting the reactor vessel
- Double-walled 2000 ml reactor vessel made of chemically resistant borosilicate 3.3 glass with bottom discharge valve
- Spring-loaded valve spindle of the drain valve to prevent glass breakage
- Reactor lid with various openings (1 x NS 29/32 center glass joint, 2 x NS 29/32, 1 x NS 14/23) for flexible adaptation to the desired application
- DN 150 clamp ring and DN 150 FEP-coated O-ring to ensure chemical resistance
- Powerful overhead stirrer EUROSTAR 60 digital with 60 Ncm, including keyless chuck for easy and fast mounting of the stirring tool
- PTFE-coated propeller stirrer for optimum mixing and chemical resistance
- High-quality stirrer guide for vacuum operation up to 3 mbar.
Further reactor vessels (with and without bottom discharge), reactor covers, stirring tools, temperature sensors, circualtors, laboratory automation and much more can be found in the section "Accessories".
To complete your system, you get all the complementary components from a single source: overhead stirrers, circulators, vacuum pumps and controllers, sensors and automation software. All from IKA and all perfectly matched to each other.
Would you like your own desired configuration? Or do you need an offer? You are welcome to contact our sales team.
Note: The scope of delivery does not include temperature hoses for connecting a thermostat.
Scope of delivery
- SY stand
- SY 2000 D Reactor vessel
- SY clamp 150
- SY clamp ring 150
- SY O-ring 150
- SY 150.1 Reactor lid
- R 4012 SY Propeller stirrer
- EUROSTAR 60 digital
- SY guide
- R 60 Keyless chuck
