Print
Volume: 100 ml
Flange size: DN 100
Including stainless steel metal adapter M 16x1 (Male) to connect temperature hoses.
Scope of delivery:
Glasreactor incl. Metal adapter
Free Shipping
SY 100 Reactor vessel
Vendor:
IKA
SKU:
20126922
Availability:
In Stock
Product Type:
Synthesis Reactors
- $2,008.71 USD
- $2,008.71 USD
- Unit price
- per
Subtotal:
$2,008.71
Estimated Delivery
Jan 25 - Feb 01
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $50
Free Returns
Authorized distributor
Products Specifications
x| Volume | 0.1 l |
| Fill level diameter ratio | 1.12 |
| Fill level at nominal volume | 48 mm |
| Vessel inner diameter | 53.6 mm |
| Vessel outer diameter | 90 mm |
| Height (room dimension) | 196 mm |
| Width (room dimension) | 197 mm |
| Depth (room dimension) | 138 mm |
| Flange type | acc. DIN 12214 with circular groove |
| Flange dimension | DN100 |
| Flange collar diameter | 108 mm |
| Bottom shape | Torispherical head |
| Tempering jacket filling capacity | 0.246 L |
| Tempering jacket inlet connection | DN 15 (tech-flange) |
| Tempering jacket inlet inner diameter | 15 mm |
| Vacuum application | yes |
| Tempering jacket outlet connection | DN 15 (tech-flange) |
| Tempering jacket oulet inner diameter | 15 mm |
| Reactor vessel material | borosilicate glass 3.3 DIN ISO 3585 |
| Working temperature | -50 - 230 ðC |
| Useable volume | 20 - 120 ml |
| Useable volume with temperature probe min. | 60 ml |
| Pressure max. | atmospheric pressure |
| Attainable vacuum | 3 mbar |
Overview

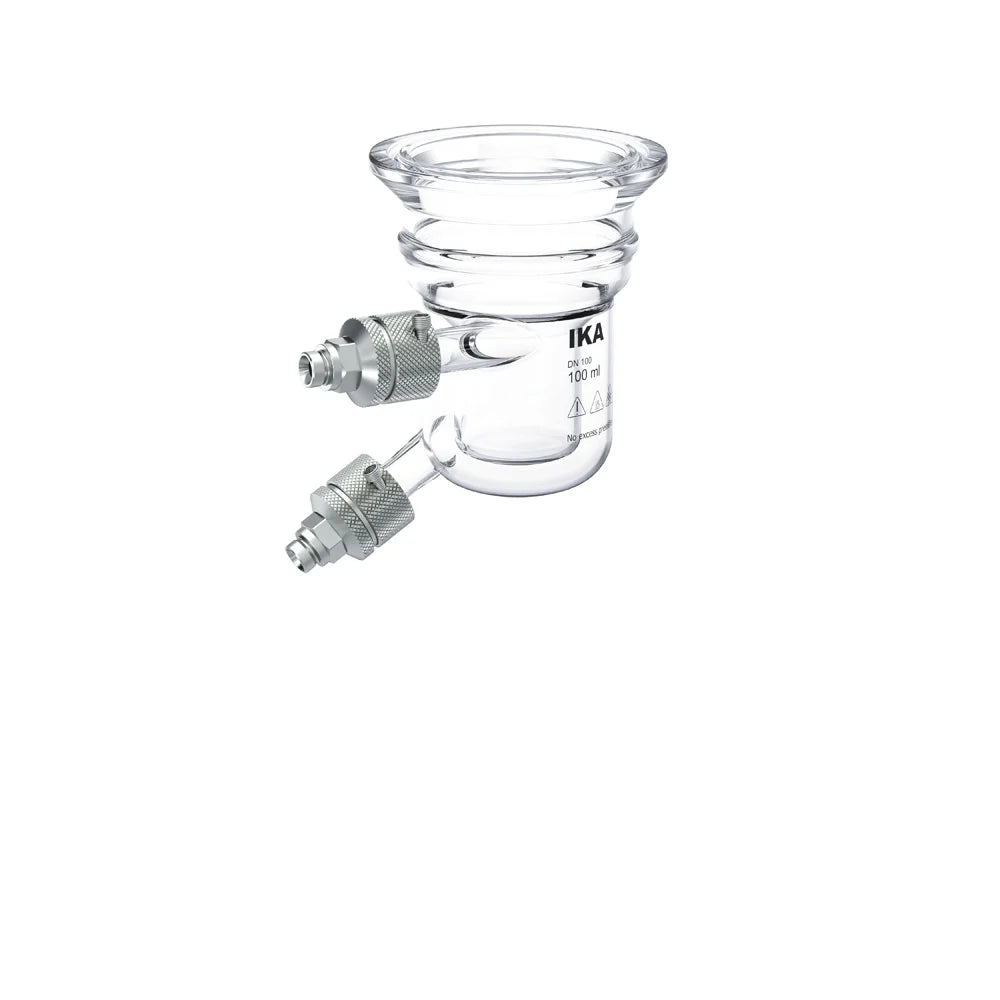

xSY 100 Reactor vessel
Double-walled reactor vessel including accessories for the EasySyn reactor system.Volume: 100 ml
Flange size: DN 100
Including stainless steel metal adapter M 16x1 (Male) to connect temperature hoses.
Scope of delivery:
Glasreactor incl. Metal adapter
