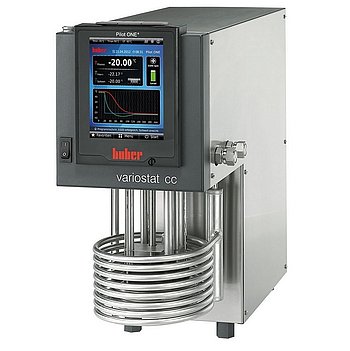

The unique Variostat can control the temperature of any size bath from -30 to 150°C. The special construction allows flexibility for the user in a number of different applications. With the infinitely controllable VPC pressure/suction pump, the circulation of the respective bath sizes can be adapted for optimal results. Furthermore, the pump pressure for external applications can be set and controlled using the menu control with an optional pressure sensor. Insulated bath vessels are available in stainless steel as an accessory in three standard sizes or can be custom made with any desired dimensions.
| Heating capacity | 1 kW | ||||||||||||
| Cooling capacity |
|
||||||||||||
| Refrigeration machine | air-cooled, natural refrigerant | ||||||||||||
| Refrigerant 1st stage | R-290 (A3, H220) | ||||||||||||
| Refrigerant quantity 1st stage | 0,04 kg |
| Delivery capacity pressure pump max. | 25 l/min; 0,7 bar |
| Delivery capacity suction pump max. | 18,5 l/min; 0,4 bar |
| Pump connection | M16x1 AG male |
| Max. permissible viscosity | 50 mm²/s |
| Pump speed adjustable | Yes |
| Pump characteristics | Pressure and suction pump, variable speed |
| External sensor connection | Pt100 |
| Interface digital | Ethernet, USB (Host u. Device), RS232 |
| Permissible ambient temperature | 5...40 °C |
| Sound pressure level | 54 dB(A) |
| Power supply | 110-120V 1~ 50/60Hz |
| Current consumption max. | 12 A |
| Fuse | 16 A |
The multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.
