UTTD control Pharma Solution

UTTD control Pharma Solution

Vendor: IKA
SKU: 10013297
Availability: In Stock
Product Type: Single-Use Crushing
€2.568,95 EUR
€2.568,95 EUR
Subtotal: €2.568,95
Terms & Conditions

Estimated Delivery

Jan 25 - Feb 01

Free Shipping

Free standard shipping on orders over $50

Free Returns

Learn More ...

Authorized distributor

UTTD control Pharma Solution

IKA

UTTD control Pharma Solution

€2.568,95
UTTD control Pharma Solution

IKA

UTTD control Pharma Solution

€2.568,95
Products Specifications
Products Specifications
x
Motor rating input36 W
Motor rating output28 W
Speed displayOLED
Speed range400 - 8000 rpm
Viscosity max.5000 mPas
Timeryes
Timer displayOLED
Speed deviation3 %
Speed adjustment10 RPM Steps
Noise without element 50 dB(A)
Process typebatch
Reversible direction of rotation yes
Dimensions (W x H x D)122 x 54 x 178 mm
Weight1.3 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 20
USB interfaceUSB-B
Voltage100 - 240 V
Frequency50/60 Hz
Power input36 W
DC Voltage24 V=
Current consumption1500 mA
Overview
Overview
x

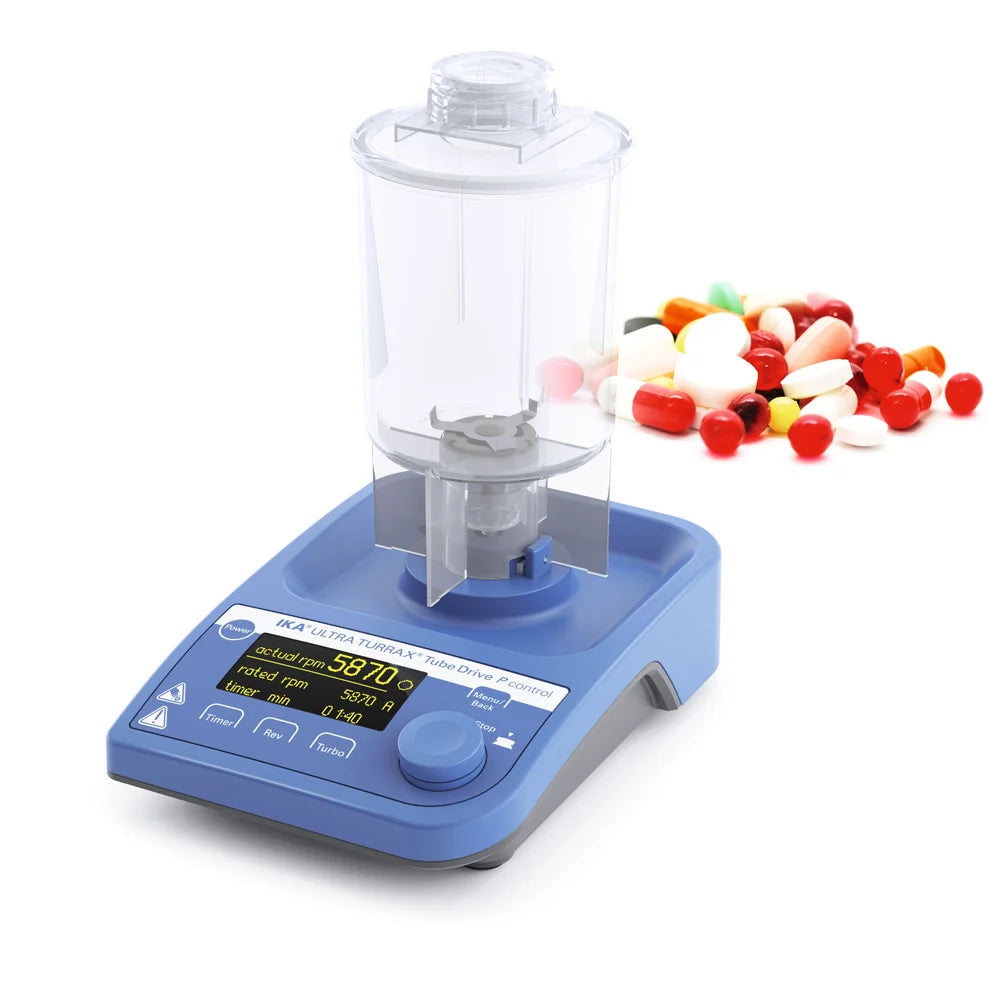

UTTD control Pharma Solution

Crushing and dissolving of tablets for subsequent analysis:

Many standardized test procedures in the pharmaceutical industry, such as the pharmacopoeia tests described in official compendia (United States Pharmacopeia (USP 905), European Pharmacopoeia (PhEur 2.9.40), etc.), require the crushing and dissolution of tablets as a first step before further analysis. The challenges in sample preparation include the avoidance of cross-contamination between sample batches, time-consuming cleaning and the often small sample quantities.

The UTTD control Pharma Solution has been specially developed by the IKA product experts to overcome these challenges.

The package includes the powerful ULTRA-TURRAX® Tube Drive P control homogenizing system, which has been designed for universal use. In combination with the disposable mixing vessels with dissolver disc (DIS-300-S-M with 300 ml volume), this system ensures optimum comminution and thorough dissolution of tablets and capsules in various solvents.

The hermetically sealable disposable sample containers serve simultaneously as a comminution vessel, storage unit and transport container. They significantly reduce the cleaning effort and systematically eliminate cross-contamination. Users benefit from reduced handling costs and a lower number of incorrect analyses. Samples can be collected or media added via the pierceable membrane in the vessel lid.



Scope of delivery
  • ULTRA-TURRAX® Tube Drive P control
  • DIS-300-S-M.10 Dissolver tube, 300 ml, 10 pcs.

Accessories
Accessories
x
Cursor
Documents for qualification LAB
IKA

Documents for qualification LAB

€589,95
Factory Calibration Certificate LAB
IKA

Factory Calibration Certificate LAB

€256,95
ST-20 Stirring tube, 20 ml
IKA

ST-20 Stirring tube, 20 ml

€222,95
ST-20-M-gamma Stirring tube, sterile, 20 ml
IKA

ST-20-M-gamma Stirring tube, sterile, 20
ml

€248,95
ST-50 Stirring tube, 50 ml
IKA

ST-50 Stirring tube, 50 ml

€111,95
ST-50-M-gamma Stirring tube, sterile, 50 ml
IKA

ST-50-M-gamma Stirring tube, sterile, 50
ml

€175,95
DT-20 Dispersing tube, 20 ml
IKA

DT-20 Dispersing tube, 20 ml

€231,95
DT-20 eco Dispersing tube, 20 ml
IKA

DT-20 eco Dispersing tube, 20
ml

€198,95
DT-20-M-gamma Dispersing tube, sterile, 20 ml
IKA

DT-20-M-gamma Dispersing tube, sterile, 20
ml

€274,95
DT-50 Dispersing tube, 50 ml
IKA

DT-50 Dispersing tube, 50 ml

€124,95
DT-50 eco Dispersing tube, 50 ml
IKA

DT-50 eco Dispersing tube, 50
ml

€111,95
DT-50-M-gamma Dispersing tube, sterile, 50 ml
IKA

DT-50-M-gamma Dispersing tube, sterile, 50
ml

€198,95
BMT-20-S Ball milling tube, stainless, 20 ml
IKA

BMT-20-S Ball milling tube, stainless,
20 ml

€245,95
BMT-20-G Ball milling tube, glass, 20 ml
IKA

BMT-20-G Ball milling tube, glass,
20 ml

€245,95
BMT-20-S-M-gamma Ball milling tube, stainless, sterile, 20 ml
IKA

BMT-20-S-M-gamma Ball milling tube, stainless,
sterile, 20 ml

€324,95
BMT-20-G-M-gamma Ball milling tube, glass, sterile, 20 ml
IKA

BMT-20-G-M-gamma Ball milling tube, glass,
sterile, 20 ml

€309,95
BMT-50-S Ball milling tube, stainless, 50 ml
IKA

BMT-50-S Ball milling tube, stainless,
50 ml

€150,95
BMT-50-G Ball milling tube, glass, 50 ml
IKA

BMT-50-G Ball milling tube, glass,
50 ml

€150,95
BMT-50-S-M-gamma Ball milling tube, stainless, sterile, 50 ml
IKA

BMT-50-S-M-gamma Ball milling tube, stainless,
sterile, 50 ml

€212,95
DIS-300-S-M.10 Dissolver tube, 300 ml, 10 pcs.
IKA

DIS-300-S-M.10 Dissolver tube, 300 ml,
10 pcs.

€150,95
DIS-300-S-M.10 Dissolver tube, 300 ml, 10 pcs.
IKA

DIS-300-S-M.10 Dissolver tube, 300 ml,
10 pcs.

€150,95
DIS-300-S-M.10 Dissolver tube, 300 ml, 10 pcs.
IKA

DIS-300-S-M.10 Dissolver tube, 300 ml,
10 pcs.

€150,95
DIS-300-S-M.10 Dissolver tube, 300 ml, 10 pcs.
IKA

DIS-300-S-M.10 Dissolver tube, 300 ml,
10 pcs.

€150,95
DIS-300-S-M.10 Dissolver tube, 300 ml, 10 pcs.
IKA

DIS-300-S-M.10 Dissolver tube, 300 ml,
10 pcs.

€150,95
DIS-300-S-M.10 Dissolver tube, 300 ml, 10 pcs.
IKA

DIS-300-S-M.10 Dissolver tube, 300 ml,
10 pcs.

€150,95
DIS-300-S-M.10 Dissolver tube, 300 ml, 10 pcs.
IKA

DIS-300-S-M.10 Dissolver tube, 300 ml,
10 pcs.

€150,95
DIS-300-S-M.10 Dissolver tube, 300 ml, 10 pcs.
IKA

DIS-300-S-M.10 Dissolver tube, 300 ml,
10 pcs.

€150,95
DIS-300-S-M.10 Dissolver tube, 300 ml, 10 pcs.
IKA

DIS-300-S-M.10 Dissolver tube, 300 ml,
10 pcs.

€150,95
DIS-300-S-M.10 Dissolver tube, 300 ml, 10 pcs.
IKA

DIS-300-S-M.10 Dissolver tube, 300 ml,
10 pcs.

€150,95
DIS-300-S-M.10 Dissolver tube, 300 ml, 10 pcs.
IKA

DIS-300-S-M.10 Dissolver tube, 300 ml,
10 pcs.

€150,95
DIS-300-S-M.10 Dissolver tube, 300 ml, 10 pcs.
IKA

DIS-300-S-M.10 Dissolver tube, 300 ml,
10 pcs.

€150,95
DIS-300-S-M.10 Dissolver tube, 300 ml, 10 pcs.
IKA

DIS-300-S-M.10 Dissolver tube, 300 ml,
10 pcs.

€150,95
DIS-300-S-M.10 Dissolver tube, 300 ml, 10 pcs.
IKA

DIS-300-S-M.10 Dissolver tube, 300 ml,
10 pcs.

€150,95
