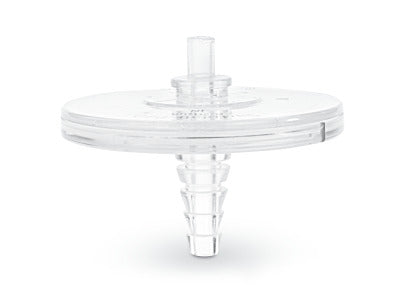

Sartolab® P20 Prefilter, Pressure Filter
Sartolab® P20 prefilter has been designed to filter batches from 100 mL to 10 L. It can...
Vendor:
Sartorius
SKU:
18072----------D
Availability:
In Stock
Product Type:
Filtration Devices
- €67,95 EUR
- €67,95 EUR
- Unit price
- per
Subtotal:
€67,95
Estimated Delivery
Oct 07 - Oct 14
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $50
Free Returns
Authorized distributor
Products Specifications
xApplications
-
ApplicationClarification
Components
-
Filling BellNo
-
PrefilterYes
Connections (Physical)
-
Connector InletFemale Luer Lock
-
Connector OutletHose Barb 6–12 mm Stepped
Dimensions
-
Filter Diameter⌀ 61 mm
-
Filtration Area20 cm²
-
Housing Dimensions61 × 50 mm
Features
-
Venting FilterNo
General Specifications
-
Flow Rate≥ 1000 mL/min at 1 bar
-
Total ThroughputUp to 10 L
-
VentNo
-
pH Range1.0 – 10.0
Materials of Construction
-
Housing MaterialPolycarbonate (PC)
-
Material PrefiltersQuartz Microfibers
-
Membrane MaterialN/A
Operating Conditions
-
Maximum Allowable Working Temperature50 °C (122 °F)
-
Operating Pressure4 bar
Physicochemical Information
-
Bubble PointMin. value with water 0.5 bar (7 psi)
-
Burst Pressure≥ 0.5 bar (72.5 psi)
-
Non-Fiber ReleasingThis filter product complies with the title 21 of the Code of Federal Regulations (CFR), section 210.3(b)(6) and 211.72.
-
Pore SizeN/A
-
WettabilityHydrophilic
Product Information
-
BrandSartolab® P20
-
Device TypePressure prefilter
-
Pack Size10
-
PackagingBulk pouch packed
-
Sample Type
-
Aqueous
- Solvents according to chemical compatibility
-
Aqueous
Sterility/Purity
-
Delivery ConditionNon-Sterile
-
Sterilization MethodN/A
Volume
-
Hold-up Volume1 mL before bubble point
-
VolumeUp to 10 L
Overview
xSartolab® P20 prefilter has been designed to filter batches from 100 mL to 10 L. It can be utilized with a syringe, integrated in-line with a peristaltic pump, or connected to a pressure vessel. Featuring a female luer-lock inlet and a hose barb outlet, this prefilter is conveniently packaged in a box containing 10 non-sterile filters. For sterilization needs, the filters can be autoclaved upon request.
Accessories
xProduct Part
x
Document
x-
Catalog
Laboratory Filtration Products Catalog
-
Datasheet
Sartolab® P20 Pressure Filter Units: Compact Design for the Filtration of Large Volumes
-
User Manual
Sartolab® P20 | P20 Plus | P20 Prefilter
