Type of sealing and bearing: Ball-bearing with PTFE sealing and FFKM O-ring
Product-touching material: AISL 316L, PTFE, FFKM
Suitable for solvents: Yes
Sterilizable: all methods (except ball bearing)
Suitable for vacuum: Yes
Max. working temperature [ðC]: 150
Shaft length [mm]: 300
Diameter stator/rotor [mm]: 45/40
Gap between [mm]: 0.5
Recommend emersion depth [mm]: 70 - 260
Recommend working range [ml]: 250 - 10,000
Free Shipping

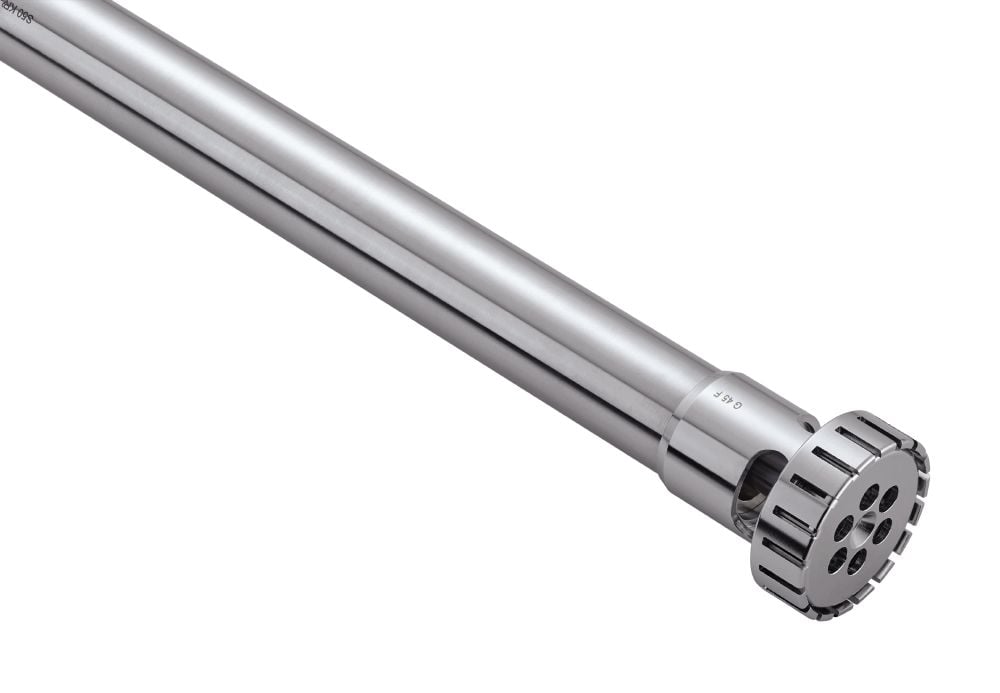

S 50 KD - G45F Dispersing tool
Vendor:
IKA
SKU:
10000631
Availability:
In Stock
Product Type:
Dispersers
- €4.430,95 EUR
- €4.430,95 EUR
- Unit price
- per
Subtotal:
€4.430,95
Estimated Delivery
Jan 25 - Feb 01
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $50
Free Returns
Authorized distributor
Products Specifications
x| Volume range (H2O) | 0.25 - 10 l |
| Stator diameter | 45 mm |
| Rotor diameter | 40 mm |
| Gap between rotor and stator | 0.5 mm |
| allowable Speed max. | 10000 rpm |
| Circumferential speed max. | 20.9 m/s |
| Immersion depth | 70 - 260 mm |
| Shaft length | 300 mm |
| Material in contact with medium | FFPM, PTFE, AISI 316L |
| pH range | 2 - 13 |
| Suitable for solvents | yes |
| Working temperature max. | 150 ðC |
| Sterilization methods | autoclavable |
| Vacuum | 100 mbar |
| Ultimate fineness, suspensions | 10 - 30 õm |
| Ultimate fineness, emulsions | 1 - 10 õm |
| Weight | 0.658 kg |
Overview
xS 50 KD - G45F Dispersing tool
Dispersing tool for the disperser T 50 digitalType of sealing and bearing: Ball-bearing with PTFE sealing and FFKM O-ring
Product-touching material: AISL 316L, PTFE, FFKM
Suitable for solvents: Yes
Sterilizable: all methods (except ball bearing)
Suitable for vacuum: Yes
Max. working temperature [ðC]: 150
Shaft length [mm]: 300
Diameter stator/rotor [mm]: 45/40
Gap between [mm]: 0.5
Recommend emersion depth [mm]: 70 - 260
Recommend working range [ml]: 250 - 10,000
