Re-usable Syringe Filter Holder 13 mm
Re-usable Syringe Filter Holder 13 mm

Re-usable Syringe Filter Holder 13 mm

Made completely of PTFE, this holder is unaffected by chemicals and contains no trace elements which could...
Vendor: Sartorius
SKU: 16514----------E
Availability: In Stock
Product Type: Filter Housings & Holders
€122,95 EUR
€122,95 EUR
Subtotal: €122,95
Materials of Construction: Polycarbonate

Estimated Delivery

Oct 07 - Oct 14

Free Shipping

Free standard shipping on orders over $50

Free Returns

Learn More ...

Authorized distributor

Re-usable Syringe Filter Holder 13 mm

Sartorius

Re-usable Syringe Filter Holder 13 mm

€122,95
Re-usable Syringe Filter Holder 13 mm
Re-usable Syringe Filter Holder 13 mm

Sartorius

Re-usable Syringe Filter Holder 13 mm

€122,95
Materials of Construction: Polycarbonate
Products Specifications
Products Specifications
x

Applications

  • Application
    Clarification
  • Application Area
    • Sterile filtration
    • Analytical sample preparation
    • Particle analysis

Compliance Information

  • Electrical / Battery item
    No

Connections (Physical)

  • Connector Inlet
    Female Luer Lock
  • Connector Outlet
    Male Luer Slip
  • Connector(s)
    Female Luer lock inlet, Luer slip outlet
  • Threads for Connectors
    Female Luer Lock inlet, luer slip outlet

Dimensions

  • Filter Diameter
    ⌀ 13 mm
  • Filtration Area
    0.5 cm²
  • Suitable Membrane Filter Diameter
    13 mm

Materials of Construction

  • Materials of Construction
    Polycarbonate

Operating Conditions

  • Maximum Operating Pressure
    7 bar (102 psi)

Physicochemical Information

  • Chemical Compatibility
    As for polycarbonate and silicone

Product Information

  • Filter Holder Type
    Re-usable Syringe Filter Holders
  • Pack Size
    12
  • Packaging
    Box, folding

Usage Protocols

  • Sterilization Procedures
    • By autoclaving (max. 134 °C)
    • Dry heat (max. 180 °C)
Overview
Overview
x

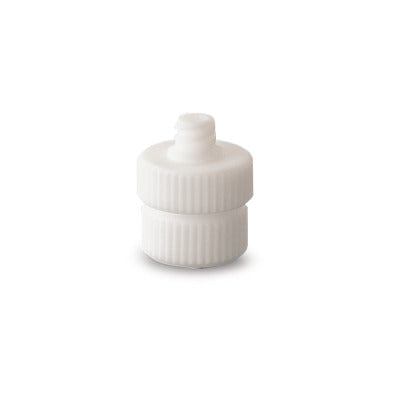

Made completely of PTFE, this holder is unaffected by chemicals and contains no trace elements which could be released into the liquid being filtered. It is, therefore, extremely well suited for particle removal from samples and reagents for analytical methods, such as NMR samples. Another inexpensive filter holder is made of clear, autoclavable polycarbonate. The silicone gasket enables a leak-free filtration at pressures of up to 7 bar by simply screwing it together manually. Filter supports in the top and bottom parts allow filtration in either direction.
