The dissolver disk design of the mixing head coupled with the high speed results in rapid mixing, dissolving, and disagglomeration. A protective cage is fitted around the mixing head and shaft to ensure operational safety. The dissolver head R 1402 is included in scope of delivery.
Alternatively, the mixing head can be changed to a propeller design with the accessory R 1405 in order to facilitate low to medium mixing viscosities under low shear at high speed.
Immersion depth: 180 mm
Working range: 0.25 - 30 l
Rotor diameter: 40 mm
Material: stainless steel (AlSl 316L)
Free Shipping
R 50 stirring shaft ëhigh speedû
Vendor:
IKA
SKU:
1689300
Availability:
In Stock
Product Type:
Dispersers
- €2.318,95 EUR
- €2.318,95 EUR
- Unit price
- per
Subtotal:
€2.318,95
Estimated Delivery
Jan 25 - Feb 01
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $50
Free Returns
Authorized distributor
Products Specifications
x| Volume range (H2O) | 0.25 - 30 l |
| Rotor diameter | 40 mm |
| allowable Speed max. | 10000 rpm |
| Circumferential speed max. | 23.6 m/s |
| Immersion depth | 50 - 180 mm |
| Shaft length | 323 mm |
| Material in contact with medium | AISI 316L, AISI 304 |
| pH range | 2 - 13 |
| Suitable for solvents | yes |
| Suitable for abrasive substances | yes |
| Working temperature max. | 150 ðC |
| Dry Operation | yes |
| Weight | 1.25 kg |
Overview

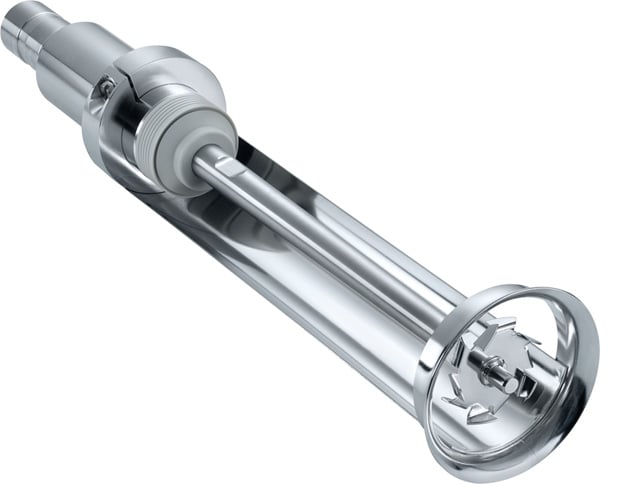

xR 50 stirring shaft ëhigh speedû
With the R 50 stirring shaft, the disperser T 50 digital can be converted into a high speed stirrer. This configuration is recommended for applications that require medium to high shearing forces.The dissolver disk design of the mixing head coupled with the high speed results in rapid mixing, dissolving, and disagglomeration. A protective cage is fitted around the mixing head and shaft to ensure operational safety. The dissolver head R 1402 is included in scope of delivery.
Alternatively, the mixing head can be changed to a propeller design with the accessory R 1405 in order to facilitate low to medium mixing viscosities under low shear at high speed.
Immersion depth: 180 mm
Working range: 0.25 - 30 l
Rotor diameter: 40 mm
Material: stainless steel (AlSl 316L)
