| Maximum speed | 5,000 rpm – 20,000 rpm |
| Air Pressure Range | 0.2-0.3 MPa |
| Exhaust Pressures Recommended | 0.07 MPa, max. *0.25 MPa |
| Recommended Air Pressure Range | 0.25 MPa |
| Water Pressure Range | 0.05-0.2 MPa |
| Usage Speed Range | 5,000-20,000 rpm |
| Air Flow (At 0.25MPa) | 46 NL/min |
| Stop Torque (At 0.25MPa) | 3.5 N cm |

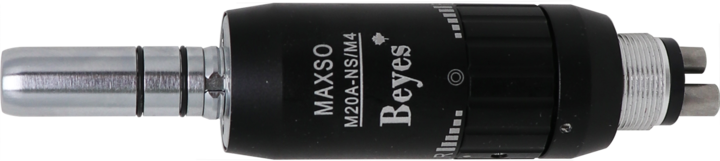

The M20A Motor offers efficient, powerful and constant torque with operational speeds up to 20,000 RPM. Its innovative fluid dynamics generate about twice as much torque compared to a conventional low speed motor in the 5,000–10,000 RPM range. The M20A Motor is comfortable to operate - it is lightweight, perfectly balanced and delivers smooth power control.
