MAS.1.82/220.Y
Vendor:
Ramo Trading
SKU:
WX-016-0166
Availability:
In Stock
- €10.203,95 EUR
- €10.203,95 EUR
- Unit price
- per
Subtotal:
€10.203,95
Estimated Delivery
Jan 05 - Jan 12
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $50
Free Returns
Authorized distributor
Products Specifications
x| Maximum capacity [Max] | 82 / 220 g |
| Minimum load | 1 mg |
| Readability [d] | 0.01 / 0.1 mg |
| Tare range | -220 g |
| Minimum weight (USP) | 40 mg |
| Minimum weight (U=1%,k=2) | 4 mg |
| Repeatability (Max) | 0.1 mg |
| Repeatability (5% Max) | 0.02 mg |
| Linearity | ±0.06 / 0.2 mg |
| Stabilization time | 6 / 2 s |
| Display | 10″ graphic colour touchscreen |
| Weighing pan dimensions | ø42 mm |
| Device dimensions W x D x H | 289×143×125 mm |
| Packaging dimensions W x D x H | 650×340×315 mm |
| Net weight | 4.7 kg |
| Gross weight | 6.7 kg |
| Protection class | IP 54, IP 43 terminal |
| Communication interface | 2×USB-A, USB-C, RS 232 (COM3), HDMI, Ethernet, Wi-Fi®, Hotspot |
| Power supply | 100 – 240 V AC 50/60 Hz |
| Operating temperature | +10 – +40 °C |
| Relative humidity | 40% – 80% |
Overview

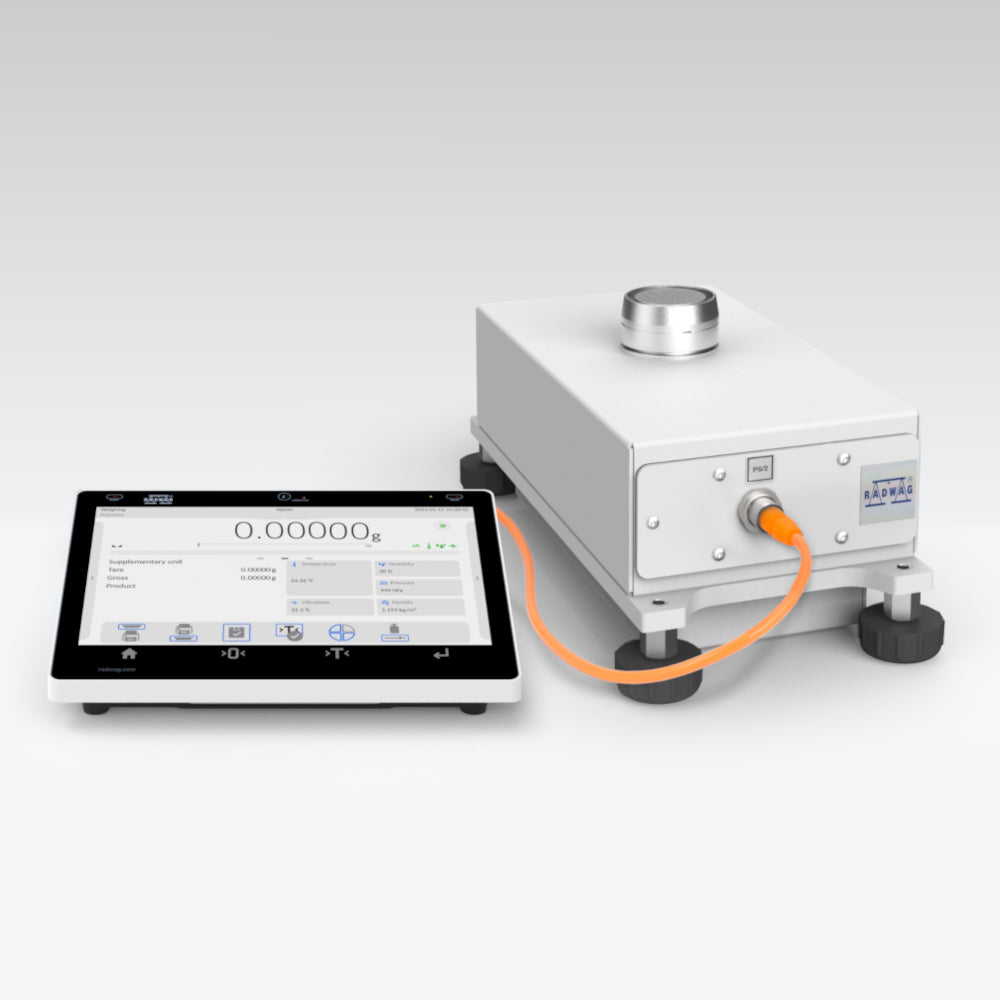

xMAS.1.82/220.Y Weighing Module
MAS.1 Y device is an electromagnetic weighing module of high resolution, equipped with 5Y touch panel featuring 10" display. The device can be integrated into a weighing system of the customer. Solid construction and advanced electronics ensure great adaptability both when fitting the module into the technological line and building it into the customer device.
Features:
- Brand new design of the electromagnetic mechanism housed in an aluminium enclosure,
- Readability of 0.01 mg,
- Overload protection,
- Ease of adaptation to the required storage space,
- Internal adjustment,
- Various options of hardware configuration,
- The 5Y panel functionality is remarkable thanks to use of numerous interfaces: 2×USB-A, USB-C, RS 232 (COM3), HDMI, Ethernet, Wi-Fi®, Hotspot.
By cause of high measurement accuracy, it is recommended to install the module inside customer's device (e.g. in a draft shield) in order to reduce the influence of ambient conditions on the measurement result.
The module comes standard with a dedicated power supply.
Wi-Fi® is a registered trademark of Wi-Fi Alliance®.
