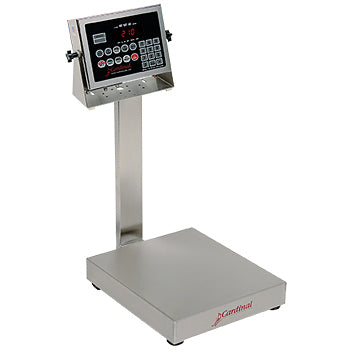

EB-210 Series

Specifications

EB-15-210:
Overall Dimensions: 10 in W x 17.1 in D x 21.4 in H / 25 cm W x 43 cm D x 53 cm H
Capacity: 15 lb x 0.005 lb / 6 kg x 0.002 kg
Platform Size: 10 in W x 12 in D / 25 cm W x 30 cm D
Shipping Weight: 30 lb / 13.6 kg

EB-30-210:
Overall Dimensions: 10 in W x 17.1 in D x 21.4 in H / 25 cm W x 43 cm D x 53 cm
Capacity: 30 lb x 0.01 lb / 15 kg x 0.005 kg
Platform Size: 10 in W x 12 in D / 25 cm W x 30 cm D
Shipping Weight: 30 lb / 13.6 kg

EB-60-210:
Overall Dimensions: 14 in W x 21.1 in D x 28.1 in H / 36 cm W x 54 cm D x 71 cm H
Capacity: 60 lb x 0.02 lb / 30 kg x 0.01 kg
Platform Size: 14 in W x 16 in D / 36 cm W x 41 cm D
Shipping Weight: 45 lb / 20.4 kg

EB-150-210:
Overall Dimensions: 14 in W x 21.1 in D x 28.1 in H / 36 cm W x 54 cm D x 71 cm H
Capacity: 150 lb x 0.05 lb / 60 kg x 0.02 kg
Platform Size: 14 in W x 16 in D / 36 cm W x 41 cm D
Shipping Weight: 45 lb / 20.4 kg

EB-300-210:
Overall Dimensions: 24 in W x 24 in D x 27.8 in H / 61 cm W x 61 cm D x 71 cm H
Capacity: 300 lb x 0.1 lb / 150 kg x 0.05 kg
Platform Size: 24 in W x 20 in D / 61 cm W x 51 cm D
Shipping Weight: 79 lb / 35.8 kg

Construction: Stainless steel
Power Requirements: 100 to 240 VAC (50/60 Hz) at 0.4A Max. Power cord included.
Display: Six-digit, seven-segment, 0.6-in (15-mm) high LED
Compensated Temperature Range: 14 to 104 ?F (-10 to 40 ?C)
Operating Temperature Range: -10 to 122 ?F (-23 to 50 ?C)
Humidity: 90% non-condensing (maximum)
Tare Capacity: Scale capacity
Sample Rate: 1 - 50 samples per second, selectable
Auto Zero Range: 0.5 or 1 through 9 divisions
Keypad:
EB-210: Color-coded membrane type, 22 keys
Standard I/O:
EB-205 and EB-210: 4 ea serial I/O ports: 1 ea 20mA output-only port (uses one of the four RS-232 ports) 1 ea bi-directional 20mA port (uses one of the four RS-232 ports) 1 ea USB port (uses one of the four RS-232 ports)
EB-210: 8 ea remote isolated inputs and 8 ea remote isolated outputs
Certification: NTEP 03-031, Measurement Canada AM-5526, OIML 0199.387
