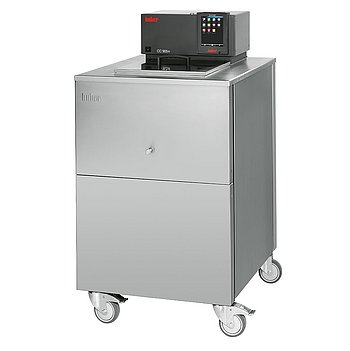

CC-906w
Performance Characteristics Refrigeration bath circulators are suitable for controlling the temperature of externally connected applications and thermoregulation...
Vendor:
Huber
SKU:
2036.0007.01
Availability:
In Stock
Product Type:
CC models, to -90°C
- €58.058,95 EUR
- €58.058,95 EUR
- Unit price
- per
Subtotal:
€58.058,95
Estimated Delivery
Feb 07 - Feb 14
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $50
Free Returns
Authorized distributor
Products Specifications
x| Heating capacity | 3 kW | ||||||||||||||||||||
| Cooling capacity |
|
||||||||||||||||||||
| Refrigeration machine | water-cooled, natural refrigerant | ||||||||||||||||||||
| Refrigerant 1st stage | R-1270 (A3, H220) | ||||||||||||||||||||
| Refrigerant 2nd stage | R-170 (A3, H280) |
| Delivery capacity pressure pump max. | 25 l/min; 0,7 bar |
| Delivery capacity suction pump max. | 18,5 l/min; 0,4 bar |
| Pump connection | M16x1 AG male |
| Max. permissible viscosity | 50 mm²/s |
| Pump speed adjustable | Yes |
| Pump characteristics | Pressure and suction pump, variable speed |
| External sensor connection | Pt100 |
| Interface digital | Ethernet, USB (Host u. Device), RS232 |
| Permissible ambient temperature | 5...40 °C |
| Bath opening WxD/BD | 260 x 260 / 200 |
| Bath volume | 30 l |
| Filling volume min. | 25 l |
| Cooling water connection | G1/2 male |
| Cooling water differential pressure min. | 3 bar |
| Cooling water pressure max. | 6 bar |
| Power supply | 460V 3~ 60Hz |
Overview
xFunctions overview
- Pilot ONE controller with Plug & Play technology
- Precise temperature control
- 5.7“ touchscreen and comfortable menu navigation
- Overtemperature and low level protection
- Safety class III/FL (DIN 12876)
- Powerful pressure/suction pump
- Programmer with calendar and clock functions
- 2-point calibration
- RS232 interface and Pt100 connection
Product impressions
Controller
The multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.
Read more
