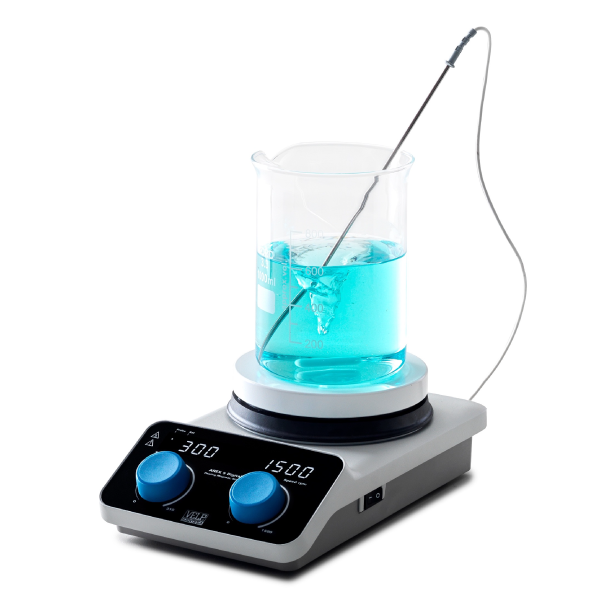

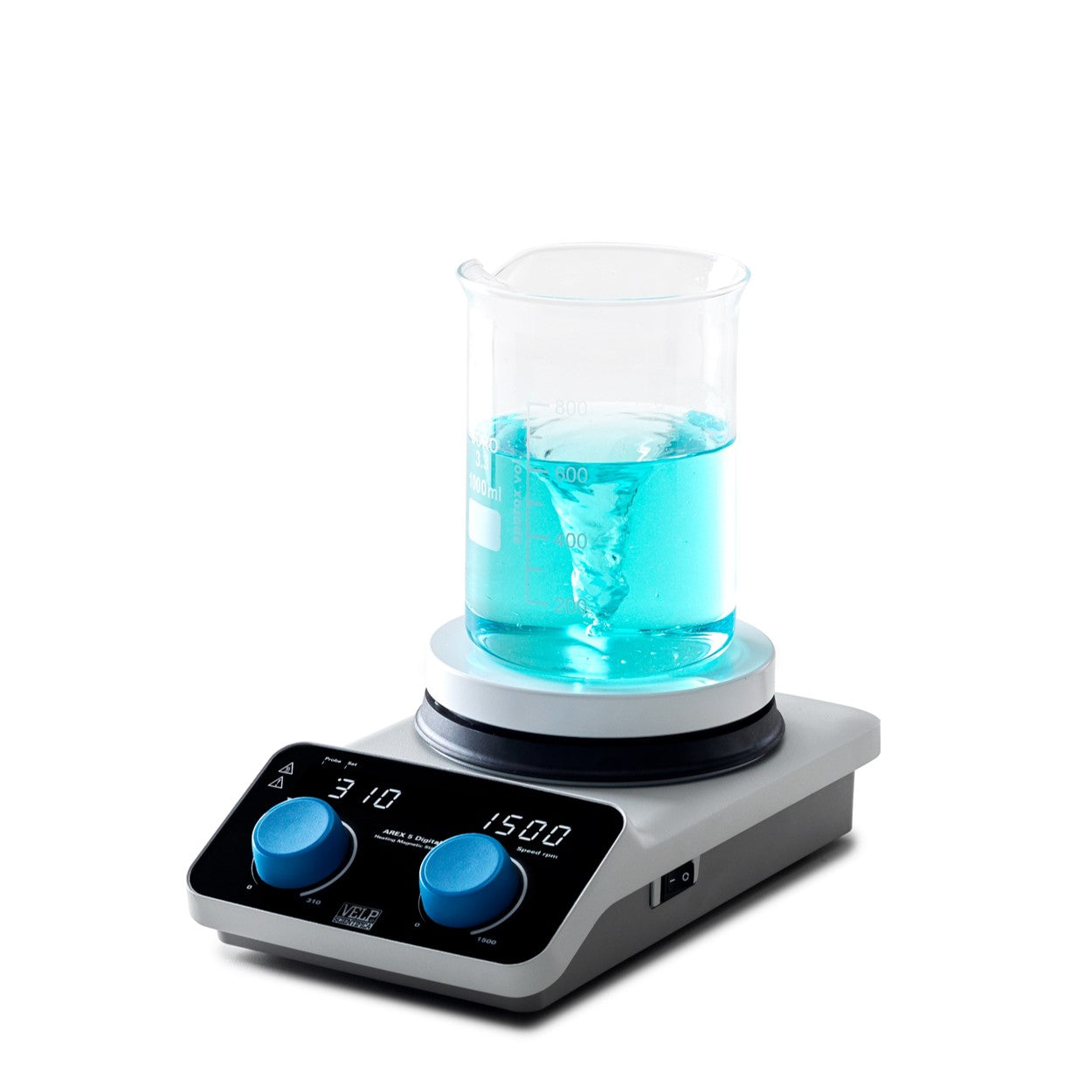

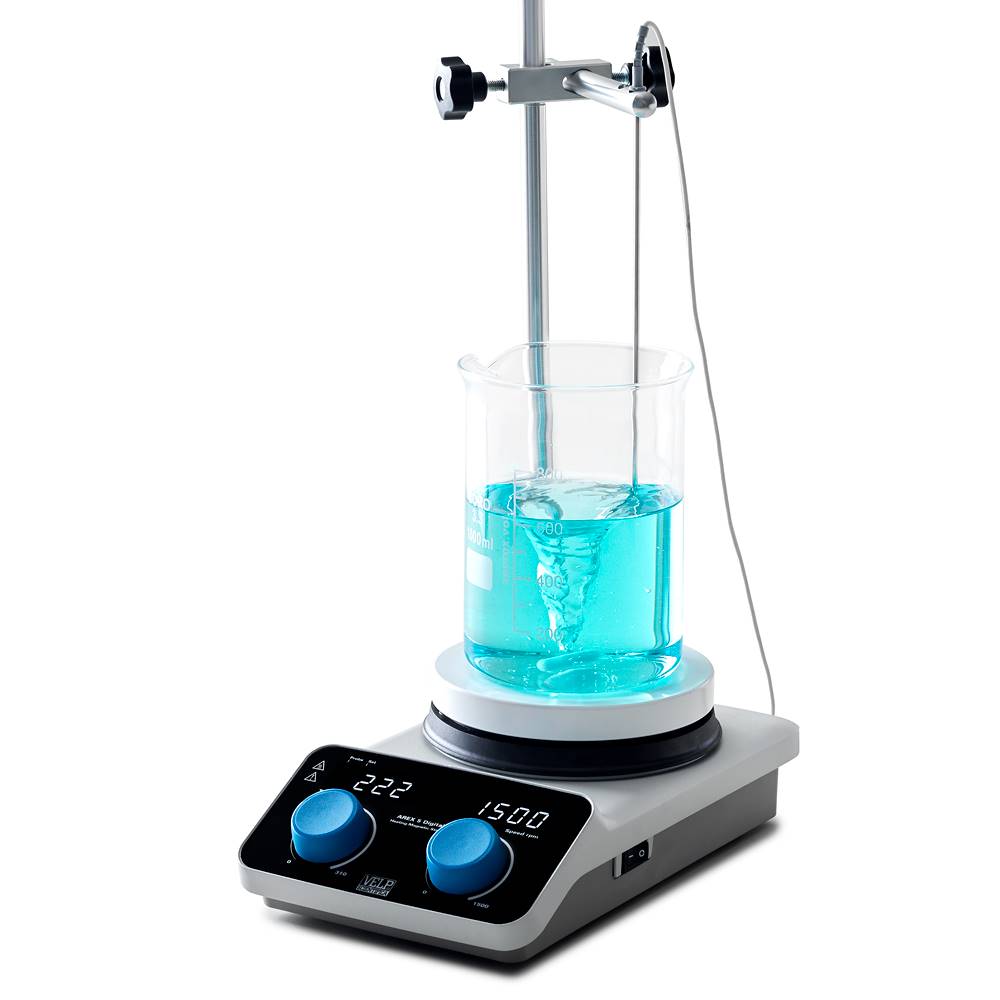

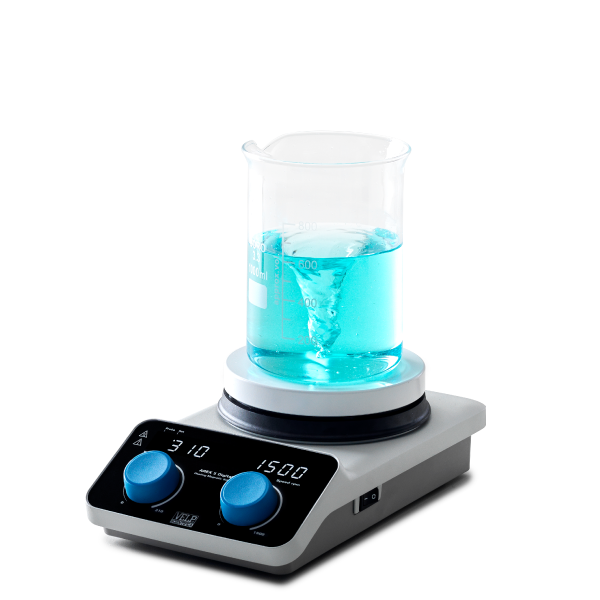

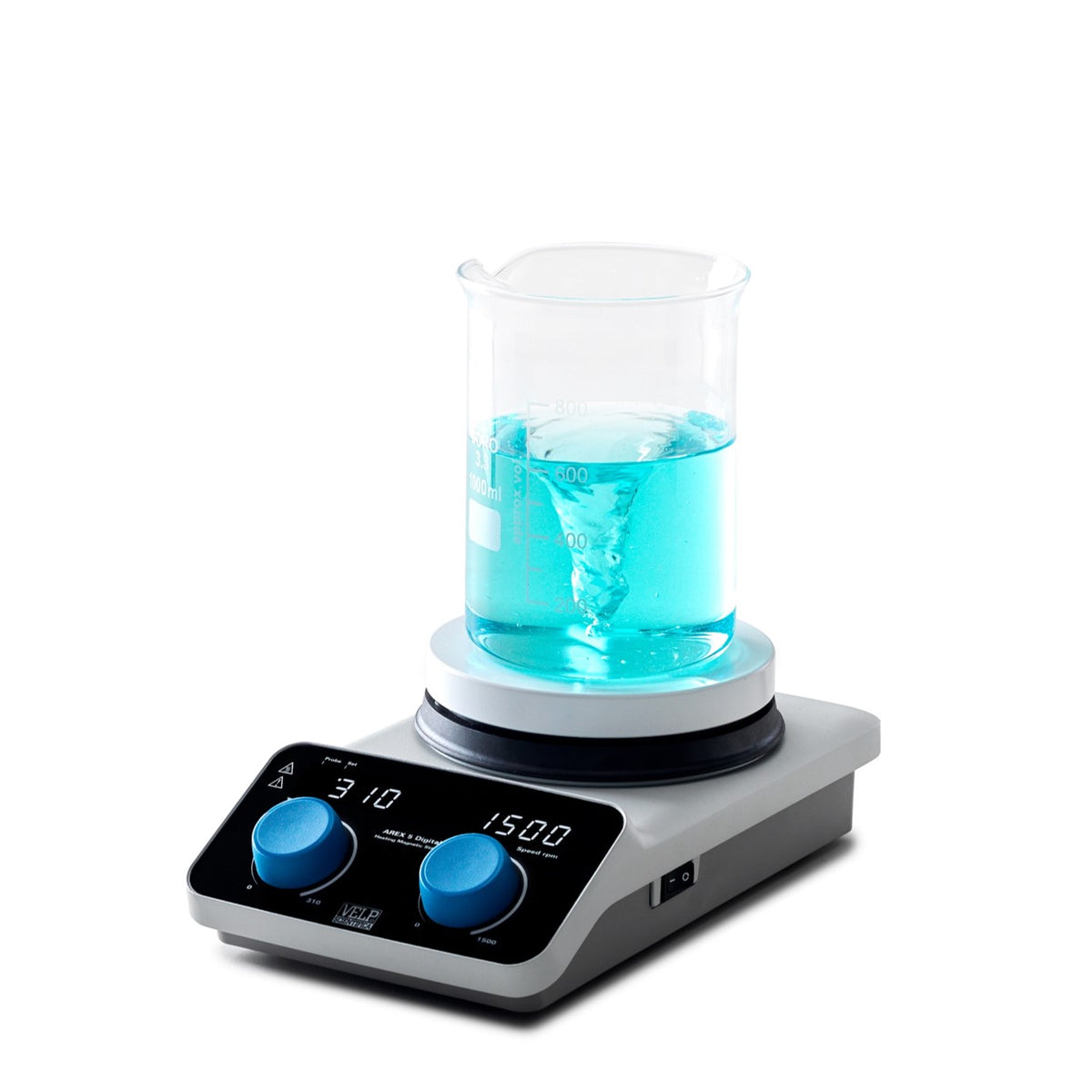

AREX 5 Digital Hot Plate Stirrer
AREX 5 Digital Hot Plate Stirrer
AREX 5 Digital Hot Plate Stirrer
AREX 5 Digital Hot Plate Stirrer
AREX 5 Digital Hot Plate Stirrer
AREX 5 Digital Hot Plate Stirrer
AREX 5 Digital Hot Plate Stirrer
AREX 5 Digital Hot Plate Stirrer

AREX 5 Digital Hot Plate Stirrer

Digital hot plate stirrer with CerAlTop™ plate ensuring precise thermoregulation of the media, high safety and maximum...
Vendor: Velp Scientifica
SKU: F20500580
Availability: In Stock
Product Type: Heating Magnetic Stirrers
$1,096.25 USD
$1,096.25 USD
Subtotal: $1,096.25
Model: 230 V / 50-60 Hz-0
Terms & Conditions

Estimated Delivery

Jun 09 - Jun 16

Free Shipping

Free standard shipping on orders over $50

Free Returns

Learn More ...

Authorized distributor

AREX 5 Digital Hot Plate Stirrer

Velp Scientifica

AREX 5 Digital Hot Plate Stirrer

$1,096.25
AREX 5 Digital Hot Plate Stirrer
AREX 5 Digital Hot Plate Stirrer
AREX 5 Digital Hot Plate Stirrer
AREX 5 Digital Hot Plate Stirrer
AREX 5 Digital Hot Plate Stirrer
AREX 5 Digital Hot Plate Stirrer
AREX 5 Digital Hot Plate Stirrer
AREX 5 Digital Hot Plate Stirrer

Velp Scientifica

AREX 5 Digital Hot Plate Stirrer

$1,096.25
Model: 230 V / 50-60 Hz-0
Products Specifications
Products Specifications
x
User interface Digital
Housing material Epoxy painted aluminum structure
Plate material CerAlTop™ (ceramic coated aluminum alloy)
Plate diameter 135 mm
Stirring volume 20 L
Stirring speed range 50 - 1500 rpm
Speed control Digital
Motor Brushless
Torque compensation SpeedServo™
Temperature range Room temp - 310 °C
Heating control Digital
Temperature setting resolution 1 °C
External temperature sensor connection Pt100
Pt1000
VTF
Thermoregulation accuracy ± 0.5 °C (VTF)
± 1.0 °C (Pt100, Pt100)
Hot plate warning system On Display (when the temperature is above 50 °C)
Protection class IP 42
Power input 630 W
Weight 1,7 kg (3,7 lb)
Dimensions (WxHxD) 160x85x270 mm (6,3x3,3x10,6 in)
Overview
Overview
x

Precise thermoregulation for a high reproducibility

The AREX 5 Digital is the perfect solution for temperature-sensitive laboratory applications where precise and accurate thermoregulation of the sample is required to ensure maximum reproducibility.

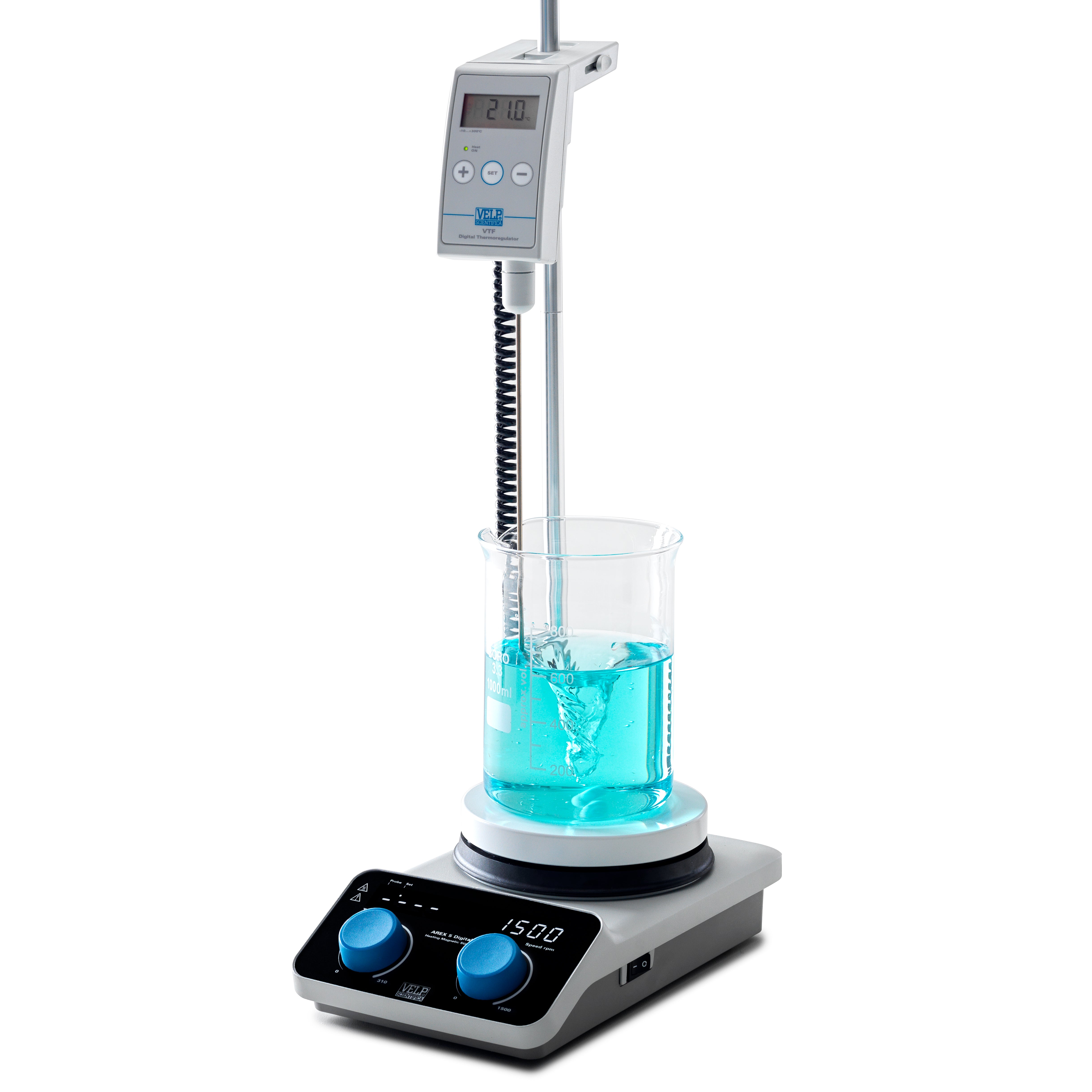

The AREX 5 Digital can be connected to external probes Pt100 and Pt1000 or to the VTF for precise temperature control of the medium

The CerAlTopTM plate reaches a maximum temperature of 310°C; when connected with the temperature probe (Pt100 and Pt1000) the AREX 5 Digital is able to heat up the medium up to 310°C with an accuracy of ± 1.0 °C while with the VTF the AREX 5 Digital is able to heat up the medium up to 300°C with an accuracy of ± 0.5 °C.

When the hotplate stirrer is connected to a temperature probe, it is possible to choose 2 different thermoregulation modes to match all requirements:
  • FAST: the Hot Plate Stirrer quickly reaches the set point temperature with a little overshoot
  • FINE: slower temperature set point reaching with an optimized overshoot
Choose the most suitable AREX 5 Digital configuration in the MODEL section of the page.

Powerful stirring for all lab applications

You can rely on the powerful brushless motor of the AREX 5 Digital for all of your laboratory reactions as it stirs volumes up to 20 L (H2O).

Speed setting is precise ranging from 50 to 1500 rpm making the AREX 5 Digital suitable for both low and high-speed applications.

The AREX 5 Digital is equipped with VELP-engineered SpeedServo™ torque compensation technology that ensures constant speed even when the viscosity of the medium changes.

The strong magnetic coupling supports reactions with multiple vials ensuring constant speed in all positions, visit our accessories section for more details.

A Safe Hotplate Stirrer Designed to Last

The AREX 5 Digital hotplate stirrer ensures a high level of safety and protection for laboratory operators.

The internal electronic parts are protected by the insulating disk, which, together with the robust die-cast aluminum housing, enables the AREX 5 Digital to withstand even the most demanding laboratory environments and applications, such as when working with cold media (below 0°C).

The 135 mm diameter top is protected from chemicals and scratches by the superior resistant CerAlTop™ ceramic coating.

Various safety functions protect users in their daily operations, such as safety circuits, over-temperature protection and probe detection alarm. It is also possible to limit the maximum operating temperature to meet the highest safety needs.

A security message "Hot" is displayed when the temperature of the plate is above 50°C and the heating function is not active.

The AREX 5 Digital is designed for the most extended lifespan (IP 42 protection) and guaranteed by a 3-year warranty (online product registration required).

A smart user interface for incredible ease of use

Thanks to the extremely bright and easy-to-read digital display you can constantly monitor the temperature and the stirring speed and set them with the highest precision.

The inclination of the front panel has been carefully designed to optimize the user experience for all the lab users and to clearly read the values shown on the digital displays.

To set the temperature and stirring speed it is required to turn and push the knobs for maximum safety.

The hot plate magnetic stirrer AREX 5 Digital offers a highly compact and low-profile design for outstanding comfort over the bench and inside the laboratory hood.
