| Application | Drilling, milling, grinding |
|---|---|
| Housing diameter | 45 mm |
| Motor type | Brushless DC motor (BLDC) |
| Speed range | 5,000 – 80,000 min-1 |
| Frequency | 83 – 1,333 Hz |
| Voltage | 45 V |
| Current | S1: 16 A, max. 24 A – 60s |
| Torque | S1: 12.4 Ncm, max. 20.1 Ncm |
| Power | S1: 1,000 W, max. 1,370 W |
| Motor protection | PTC |
| Weight | 1,85 kg |
| Bearing | 2 x hybrid, lifetime lubricated |
| Concentricity | ≤ 1.5 µm |
| Chuck clamping range | Ø max. 6 mm |
| Collet type | C5 |
| Tool change | Pneumatic Direct 4 -4.5 bar (hose Ø 4 mm) |
| Collet stop | Yes |
| Taper cleaning | Yes |
| Cooling system | Cooling through clamping device Integrated cooling channels for external Tool cooling |
| Protection class | IP 55 |
| Protected against dirt and cooling lubricants | Yes |
| Housing material | Stainless steel |
| Sensors | Motor temperature sensor |
| Cable / connector type | 915 |
| Inverter recommendation | e@syDrive 4310 (IP00) e@syDrive 4625 e@syDrive 4626 |

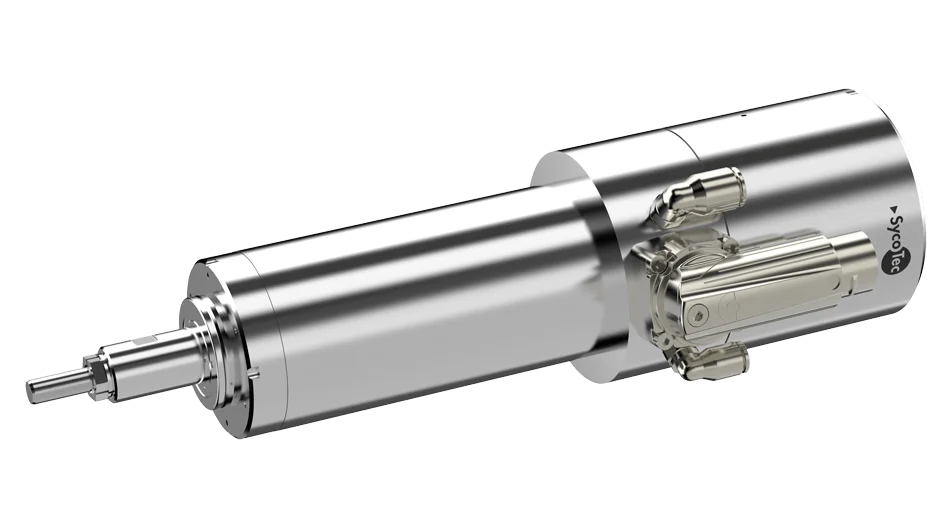

Discover the first-class HF motor spindle for industrial applications in CNC systems with outstanding parameters. Our high-frequency motor spindle offers precise performance, reliability and efficiency to meet the requirements of demanding manufacturing processes. Learn more about the optimal integration of this spindle into your CNC system and increase the productivity of your operation with state-of-the-art technology.
2.003.3035_6045-DC-C5-80-10.stp–\t9.09 MB
DS_6045-DC-C5-80-10-EP4_2.003.3035_2025-01.pdf–\t215.59 KB
KE_Spindel_6045_7366-06.pdf–\t306.07 KB
