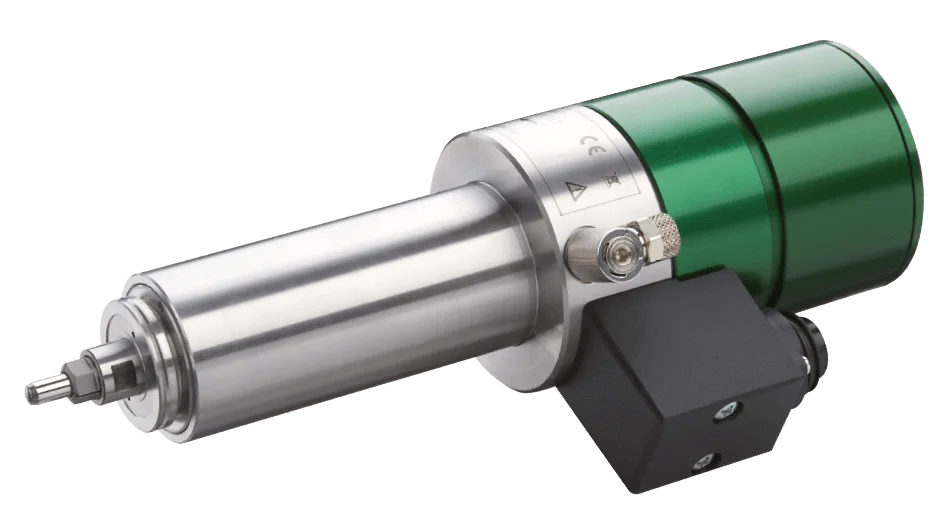

4041 AC-HY-ESD HF Motor Spindle – 45mm, 48V, IP54, ESD
Vendor:
Sycotec
SKU:
20012520
Availability:
In Stock
- €5.034,95 EUR
- €5.034,95 EUR
- Unit price
- per
Subtotal:
€5.034,95
Estimated Delivery
Feb 11 - Feb 18
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $50
Free Returns
Authorized distributor
Products Specifications
x| Application | Drilling, milling, grinding, engraving, PCB milling |
|---|---|
| Housing diameter | 45 mm |
| Motor type | 3-phase asynchronous motor |
| Speed range | 5,000 – 50,000 min-1 |
| Frequency | 83 – 833 Hz |
| Voltage | 48 V |
| Current | max. 13 A |
| Torque | S1: 7.5 Ncm, max. 27 Ncm |
| Power | S1: 175 W, max. 500 W |
| Motor protection | PTC-100℃ |
| Weight | 3.5 kg |
| Bearing | 3 x hybrid, lubricated for life |
| Concentricity | ≤ 1.5 µm |
| Collet range | Ø 1.0 – 6.35 mm (incl. 1/8″ + 1/4″) |
| Collet type | C4 |
| Tool change | Pneumatic Direct 5 – 6 bar |
| Cooling system | Cooling through clamping device |
| Protection class | IP 54 |
| Protected against dirt and cooling lubricants | Sealing air |
| Housing material | Stainless steel |
| Sensors | Motor temperature sensor |
| Cable / connector type | EM-C16 |
| Inverter recommendation | e@syDrive 4625 e@syDrive 4626 |
Overview
xDiscover the first-class HF motor spindle for industrial applications in CNC systems with outstanding parameters. Our high-frequency motor spindle offers precise performance, reliability and efficiency to meet the requirements of demanding manufacturing processes. Learn more about the optimal integration of this spindle into your CNC system and increase the productivity of your operation with state-of-the-art technology.
Accessories
x
Product Part
x
Document
x-
CAD
2.001.2520_4041-AC-HY-ESD-ChuckD6.stp–\t1.54 MB
-
Data sheet
DS_4041-AC-HY-ESD_2.001.2520_2025-01.pdf–\t263.71 KB
-
Certificates
KE_Spindel_4060-4060AC-T-4061.pdf–\t518.50 KB
-
Certificates
RoHS_Spindel_4041.pdf–\t254.22 KB
