AP2-1 Current Loop Unit (Plastic Housing)
Vendor:
Radwag
SKU:
WX-016-0011
Availability:
In Stock
- $205.50 USD
- $205.50 USD
- Unit price
- per
Subtotal:
$205.50
Estimated Delivery
Jan 17 - Jan 24
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $50
Free Returns
Authorized distributor
Products Specifications
x| Packaging dimensions W x D x H | 220×190×90 mm |
| Net weight | 0.4 kg |
| Gross weight | 0.8 kg |
Overview
xAP2-1 Current Loop Unit (Plastic Housing)

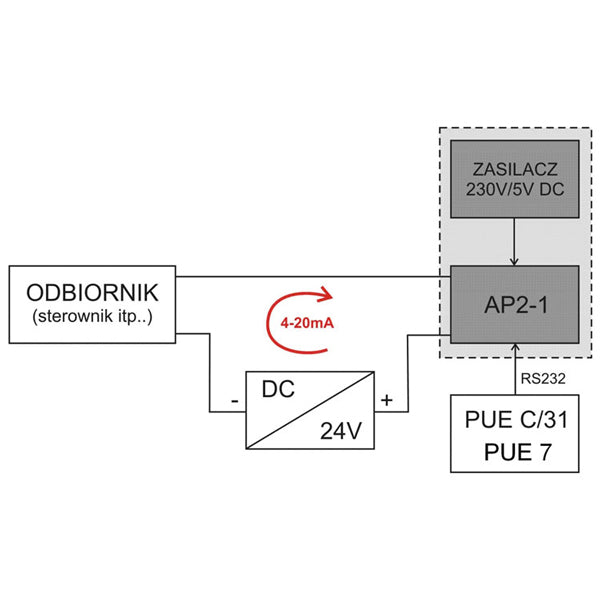

AP2-1 Current Loop unit 4–20 mA has been designed to convert digital value of mass to analog value. It is a unit of passive type, i.e. it requires to be supplied with power from an external source, of 24 VDC voltage value.
AP2-1 Current Loop unit indicates mass as:
AP2-1 Current Loop unit indicates mass as:
- absolute value (no sign),
- positive values exclusively,
- mass value with sign.
The AP2-1 is intended for cooperation mainly with scales operated via PUE C315 and PUE 7.1 indicators. It is housed in a plastic casing, and powered with power supply 230V/5VDC. The AP2-1 and the power supply are sold as a set. The current circuit is led through 1.7-meter-long cable.
Accessories
x
Product Part
x
Document
x-
Data Sheet
Data Sheet
-
User Manual - AP2 analogue output module
User Manual - AP2 analogue output module
