Water Vapour Permeability Determination Set
Vendor:
Radwag
SKU:
WX-003-0009
Availability:
In Stock
- $613.50 USD
- $613.50 USD
- Unit price
- per
Subtotal:
$613.50
Estimated Delivery
Nov 12 - Nov 19
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $50
Free Returns
Authorized distributor
Products Specifications
xOverview

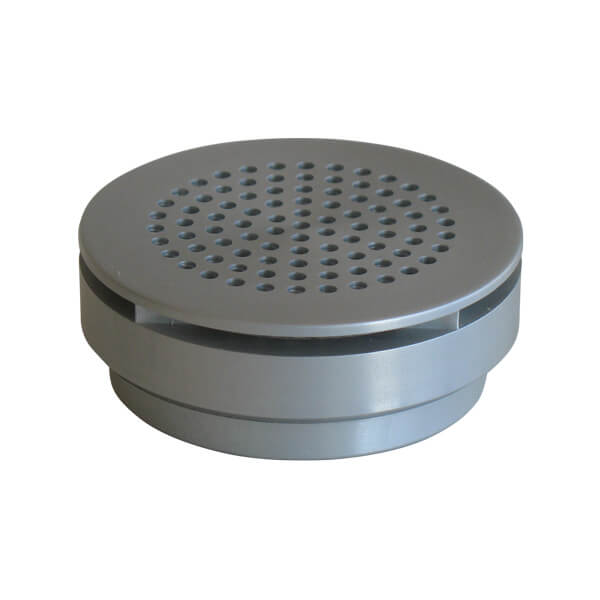

xWater Vapour Permeability Determination Set
The water vapour permeability determination set is used in moisture analyzers
of max capacity greater than 50g.
of max capacity greater than 50g.
Water vapour

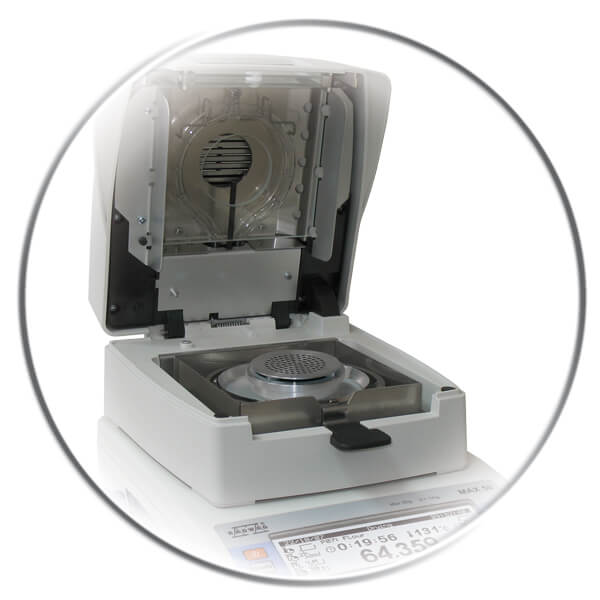

permeability is a feature that determines the quality and practicality of application of a given fabric. Clothes or footwear made of materials of inadequate permeability may be unhealthy and uncomfortable. In order to determine water vapour permeability, RADWAG moisture analyzer has to be equipped with a water vapour permeability determination set.
The developed method of testing water vapour permeability consists in placing required amount of water in a vessel made of aluminium alloy, inside which a fabric sample, cut using a blanking die, is clamped. Prior to the test, the sample should be left in a room with stable ambient conditions for 24 hours. It is recommended to place the vessel containing water and sample in the moisture analyzer and start the drying process at 40°C. The advantage of this method is a very short drying time. It takes up to 50 minutes to obtain the result. In contrast, measurement carried out using standard method takes up to 72 hours.
Measurement results are presented in mg H2O / 1000 mm2 / 24h or as the percentage amount of water vapour passed through the material to the amount of water vapour passed without the tested fabric.
Measurement results are presented in mg H2O / 1000 mm2 / 24h or as the percentage amount of water vapour passed through the material to the amount of water vapour passed without the tested fabric.
