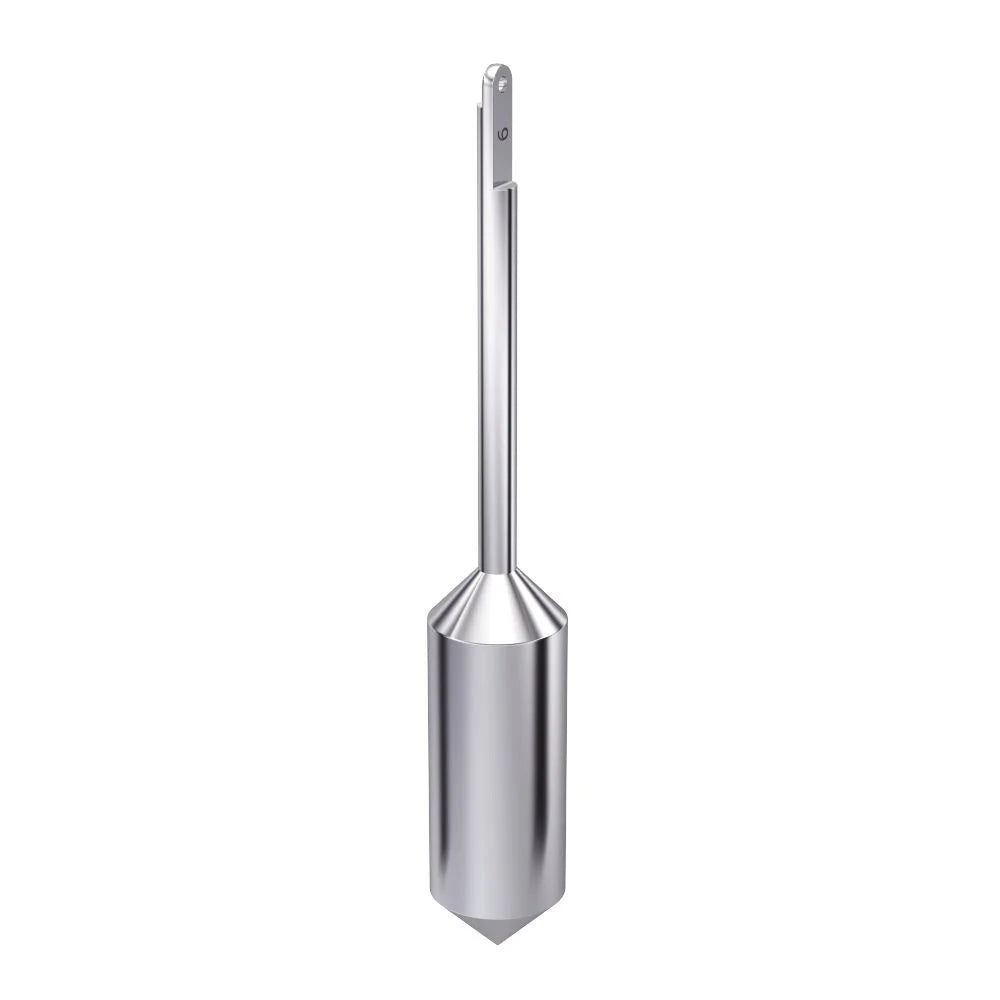

| Spindle geometry | Cylinder |
| Connection | Thread M2.5 LH |
| Hook connector | yes |
| Diameter | 11.8 mm |
| Immersion depth | 35.4 mm |
| Spindle length | 77.5 mm |
| Sample volume | 9 ml |
| Flow Jacket | yes |
| Mounting Bracket | yes |
| Sample container: | Specified chamber |
| Working temperature max. | 100 ðC |
| Viscosity Accuracy (FSR) | 2 % |
| Viscosity Repeatibility (FSR) | 0.2 % |
| Min. FSR match ROTAVISC lo-vi | 150 mPa.s |
| Max. FSR match ROTAVISC lo-vi | 29994 mPa.s |
| Min. FSR match ROTAVISC me-vi | 1600 mPa.s |
| Max. FSR match ROTAVISC me-vi | 320000 mPa.s |
| Min. FSR match ROTAVISC hi-vi I | 3200 mPa.s |
| Max. FSR match ROTAVISC hi-vi I | 640000 mPa.s |
| Min. FSR match ROTAVISC hi-vi II | 12800 mPa.s |
| Max. FSR match ROTAVISC hi-vi II | 2560000 mPa.s |
| Material in contact with medium | stainless steel 1.4404 |
| Dimensions (W x H x D) | 14 x 80 x 14 mm |
| Weight | 0.028 kg |
