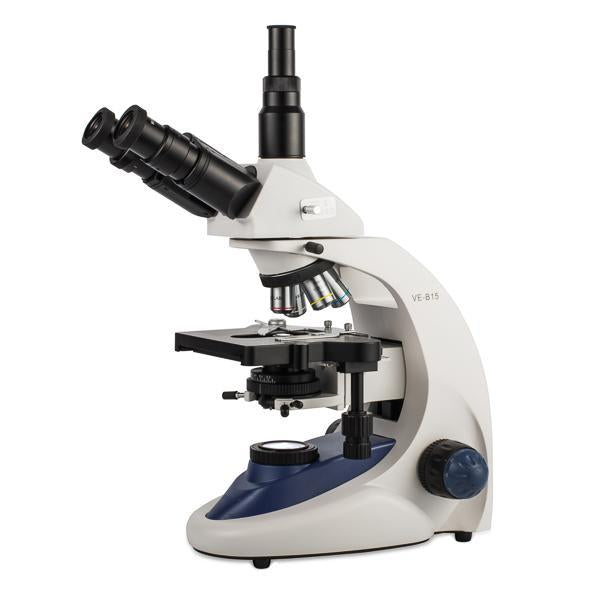

Velab VE-B15 Biological Trinocular Microscope with Plan-Achromatic Optics and Infinity Correction

Specifications

• Eyepieces: Wf 10X/22Mm with Rubber Eyecups and Diopter Adjustment On One Eyepiece.
• Head: Triocular Siedentopf Type, 45 degree Inclined and 360 degree Rotation, with Interpupillary Distance Adjustment Between 48 - 75 mm / 1.88" - 2.95".
• Nosepiece: Quadruple Nosepiece with Anti-Slip Grip and Click-Stops.
• Objectives: 4X, 10X, 40X (S) and 100X (S) (Oil), Infinity Corrected Plan Achromatic Optics, Metallic Finish and Color Ring for Easy Identification.
• Stand: Stative, Robust and Reinforced with Epoxy Paint Finish.
• Stage: Two-Layer Stage with X-Y Coaxial Movement, 5.90" x 5.19", Vernier, Millimeter Scale, Clamp and Height Adjustment with Stop.
• Condenser: Abbe, N.A. 1.25 with Height Adjustment Screw. Equipped with Adapter for Phase Contrast Kit and Polarization Set (Not Included).
• Diaphragm: Iris with Filter Holder.
• Focusing: Coarse and Fine Anti-Slip Control Knob with Tension Adjustment.
• Illumination: Kohler Led with Variable Intensity Control and Field Diaphragm In The Lamp.
• Power Supply: Three 1.2V AA Rechargeable Batteries (Included) for 4 Hours of Continuous Operation. 110-240V, 50/60 Hz Ac Adapter.
• Dimensions: 10.43" x 19.88" x 11.61"

Accessories Included

• Blue, Green and Yellow Filters.
• Dust Cover.
• Immersion Oil.
• Operation Manual.
• Power Cord.

Warranty

• 10-Years Limited Warranty.

Documents

• Data Sheet
