| EYEPIECES: PL 10X/18 mm |
| NOSEPIECE: Quadruple |
| OBJECTIVES: 4X, 10X, 40X (S) and 100X (S) (oil) |
| OPTICAL SYSTEM: Plan Achromatic |
|

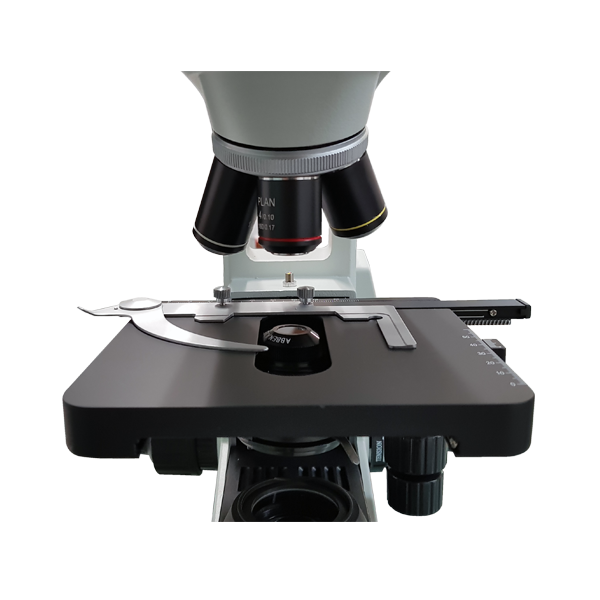

STAGE: Double layer with coaxial movement X-Y, 140 x 132 mm / 5.5” x 5.1”. |
| CONDENSER: Abbe, N.A. 1.25 |
|
DIAPHRAGM: Iris type with filter holder. |
|
FOCUS: Coarse and fine anti-slip control knob (precision 0.002 mm). |
| ILUMINATION: LED 3W |
| DIMENSIONS: 220 x 380 x 330 mm / 8.6" x 14.9" x 12.9" |
|
POWER SUPPLY: 110/240V, 50/60 Hz, AC Adapter |
