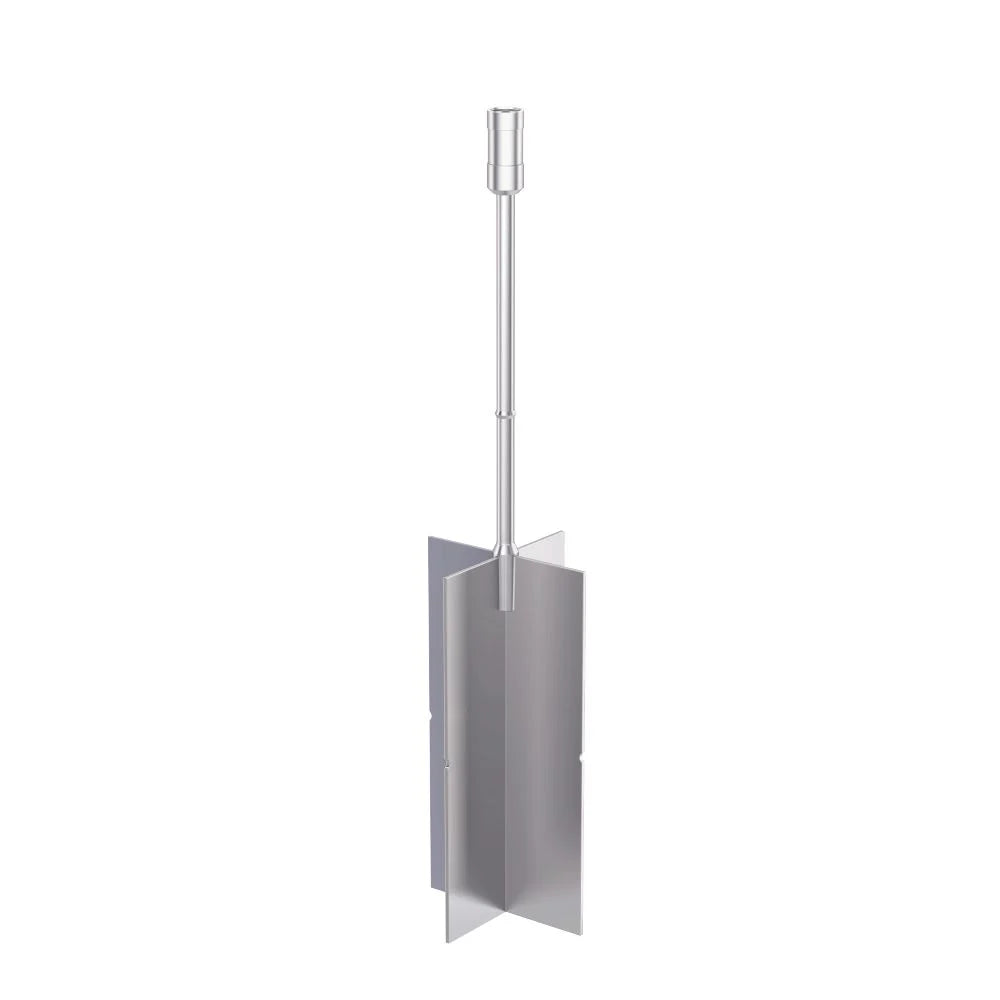

| Spindle geometry | Vane |
| Connection | Thread M2.5 LH |
| Quick plug connector | yes |
| Hook connector | yes |
| Diameter | 34.4 mm |
| Immersion depth | 94.4 mm |
| Spindle length | 147.4 mm |
| Viscosity Accuracy (FSR) | 2 % |
| Viscosity Repeatibility (FSR) | 0.2 % |
| Min. FSR match ROTAVISC lo-vi | 12.3 mPa.s |
| Max. FSR match ROTAVISC lo-vi | 2456 mPa.s |
| Min. FSR match ROTAVISC me-vi | 131 mPa.s |
| Max. FSR match ROTAVISC me-vi | 26200 mPa.s |
| Min. FSR match ROTAVISC hi-vi I | 262 mPa.s |
| Max. FSR match ROTAVISC hi-vi I | 52400 mPa.s |
| Min. FSR match ROTAVISC hi-vi II | 1048 mPa.s |
| Max. FSR match ROTAVISC hi-vi II | 209600 mPa.s |
| Material in contact with medium | stainless steel 1.4404 |
| Dimensions (W x H x D) | 149.5 x 35 x 35 mm |
| Weight | 0.036 kg |
Data Sheet
Technical info_VAN-SP-1
