UTL 25 digital Inline ULTRA-TURRAX®
Vendor:
IKA
SKU:
10006857
Availability:
In Stock
Product Type:
Dispersers
- $11,367.05 USD
- $11,367.05 USD
- Unit price
- per
Subtotal:
$11,367.05
Estimated Delivery
Jan 25 - Feb 01
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $50
Free Returns
Authorized distributor
Products Specifications
x| Motor rating input | 500 W |
| Motor rating output | 300 W |
| Pump rate | 11.6 l/min |
| Speed range | 3000 - 25000 rpm |
| Speed display | scale |
| Speed adjustment | stepless |
| Noise without element | 73 dB(A) |
| Extension arm diameter | 13 mm |
| Extension arm length | 175 mm |
| Chamber volume | 26 ml |
| Attainable vacuum | 1 mbar |
| Pressure max. | 6 bar |
| Process type | inline |
| Dimensions (W x H x D) | 450 x 120 x 100 mm |
| Weight | 3.8 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 20 |
| Voltage | 230 V |
| Frequency | 50/60 Hz |
| Power input | 500 W |
Overview

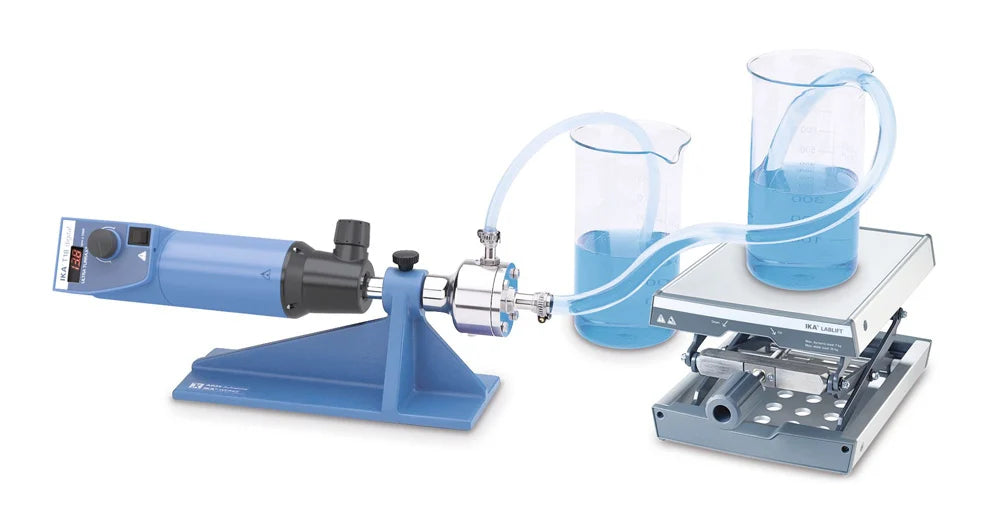

xUTL 25 digital Inline ULTRA-TURRAX®
For circulation or flow-through processing in the laboratory.- Simple, compact and sturdy modular design
- Sterilizable, autoclave-compatible
- Table-top or stand-supported device, low space requirement
- Easy disassembly
- Large delivery capacity of 4.4 to 11.6 l/min with open outlet (the mounting of a valve can reduce the flow rate)
- For air-free, sterile, and inline suspension, emulsifying and deagglomeration
- For vacuum or pressurized operation (up to 6 bar)
- If the DK 25.11 is used, air induction is also prevented in batch operation
- Not self-priming
- A pump can be integrated between intake nozzle and vessel. As a result, viscous fluids can be processed
- Not suitable for continuous operation or cyclical continuous operation
- The hoses used should have an inner diameter size of 13 mm (inlet) and 9 mm (outlet) respectively to fit the DK 25.11 flow chamber
Scope of delivery
- T 25 digital ULTRA-TURRAX®
- DK 25.11 flow chamber
- AD 25 mounting support
- S 25 KV - 25 G-IL dispersing tool
