| Cooling capacity |
|
||||||||||
| Refrigeration machine | air-cooled, CFC- and HCFC-free | ||||||||||
| Refrigerant 1st stage | R-449A (A1, H280) | ||||||||||
| Refrigerant quantity 1st stage | 0,33 kg |
| Delivery capacity pressure pump max. | 25 l/min; 2,5 bar |
| Pump connection | G3/4 AG male |
| Pump speed adjustable | no |
| Pump type | B |
| Pump characteristics | Pressure pump, speed not variable, manual bypass integrated |
| External sensor connection | Pt100 |
| Interface digital | Ethernet, USB (Host u. Device), RS232 |
| Permissible ambient temperature | 5...40 °C |
| Sound pressure level | 63 dB(A) |
| Filling volume min. | 3,8 l |
| Expansion volume | 1,7 l |
| Power supply | 208-230V 1~/2~ 60Hz |
| Current consumption max. | 7 A |

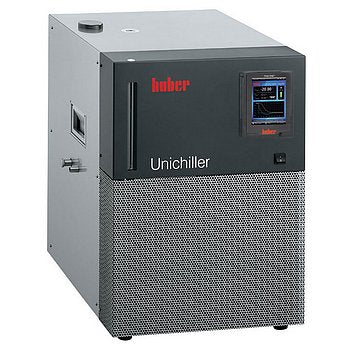

The multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.
