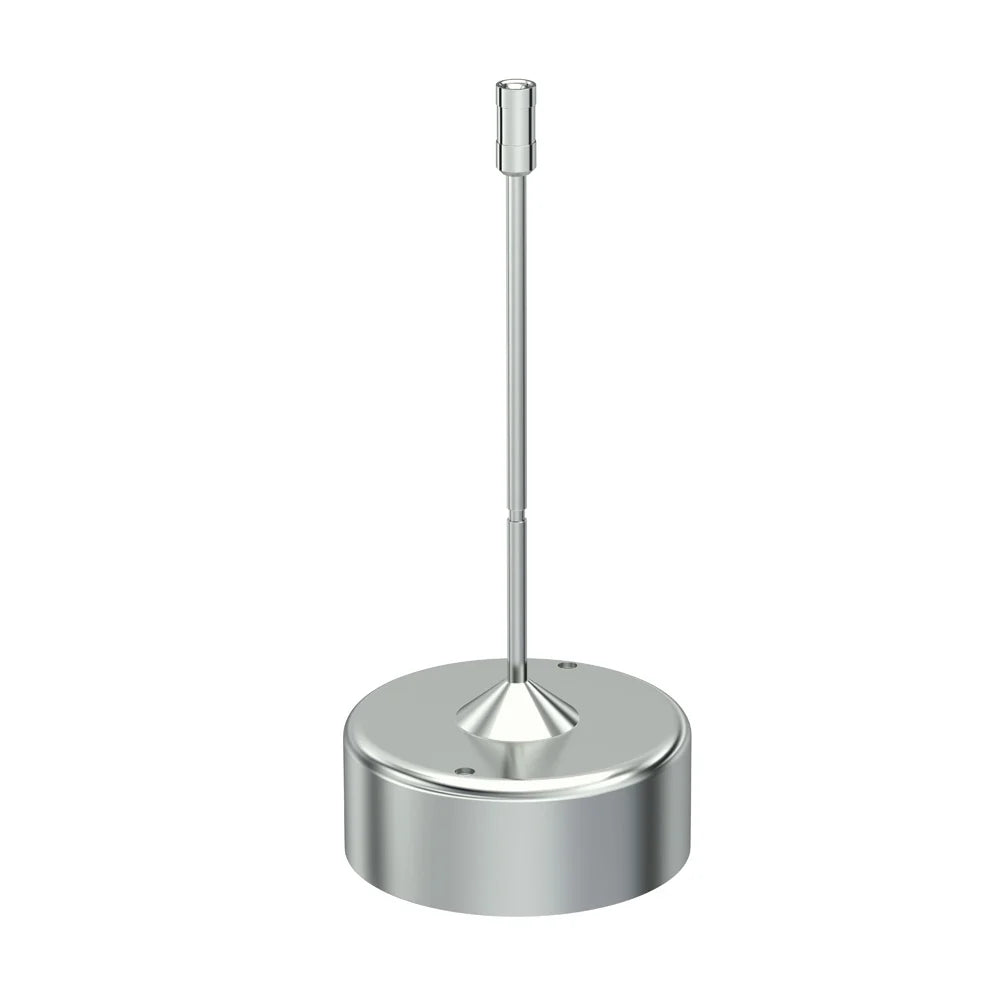

| Spindle geometry | Cylinder |
| Connection | Thread M2.5 LH |
| Quick plug connector | yes |
| Hook connector | yes |
| Diameter | 56.3 mm |
| Immersion depth | 61.1 mm |
| Spindle length | 133 mm |
| Mounting Bracket | yes |
| Sample container: | 600mL beaker low |
| Viscosity Accuracy (FSR) | 1 % |
| Viscosity Repeatibility (FSR) | 0.2 % |
| Min. FSR match ROTAVISC lo-vi | 15 mPa.s |
| Max. FSR match ROTAVISC lo-vi | 937.3 mPa.s |
| Min. FSR match ROTAVISC me-vi | 200 mPa.s |
| Max. FSR match ROTAVISC me-vi | 10000 mPa.s |
| Min. FSR match ROTAVISC hi-vi I | 400 mPa.s |
| Max. FSR match ROTAVISC hi-vi I | 20000 mPa.s |
| Min. FSR match ROTAVISC hi-vi II | 1600 mPa.s |
| Max. FSR match ROTAVISC hi-vi II | 80000 mPa.s |
| Material in contact with medium | stainless steel 1.4404 |
| Dimensions (W x H x D) | 58 x 135 x 58 mm |
| Weight | 0.066 kg |
Data Sheet
Technical info_SP-6
