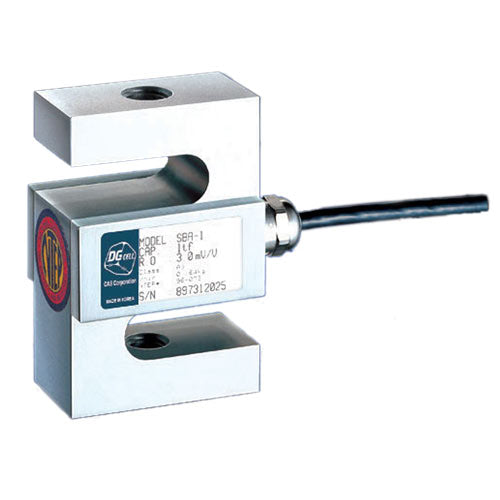

Name: SBA Series
Brand: CAS
SKU: SBA-50L
Price: 158.0 USD
Availability: InStock

SKU	SBA Series
Rated Output	3 mV/V ± 10%
Combined Error	< 0.02% R.O.
Repeatability	< 0.01% R.O.
Creep	< 0.017% R.O.
Temperature Effect on Zero	0.014
Recommended Excitation Voltage	DC 10V
Maximum Excitation Voltage	DC 15V
Input Resistance	400 ± 25 ohms
Output Resistance	350 ± 3.5 ohms
Insulation Resistance	> 2000 Megohms
Cable Length	20’ / 6m - 4 conductor with shield
Compensated Temp Range	-10°C - +40°C
Safe Overload	150% Rated Capacity
Protection Class	IP 65
Country of Manufacture	South Korea
Capacity	50 lb , 75 lb , 100 lb , 150 lb , 250 lb , 300 lb , 500 lb , 750 lb , 1K , 1.5K , 2K , 2.5K , 3K , 5K , 10K , 15K , 20K
