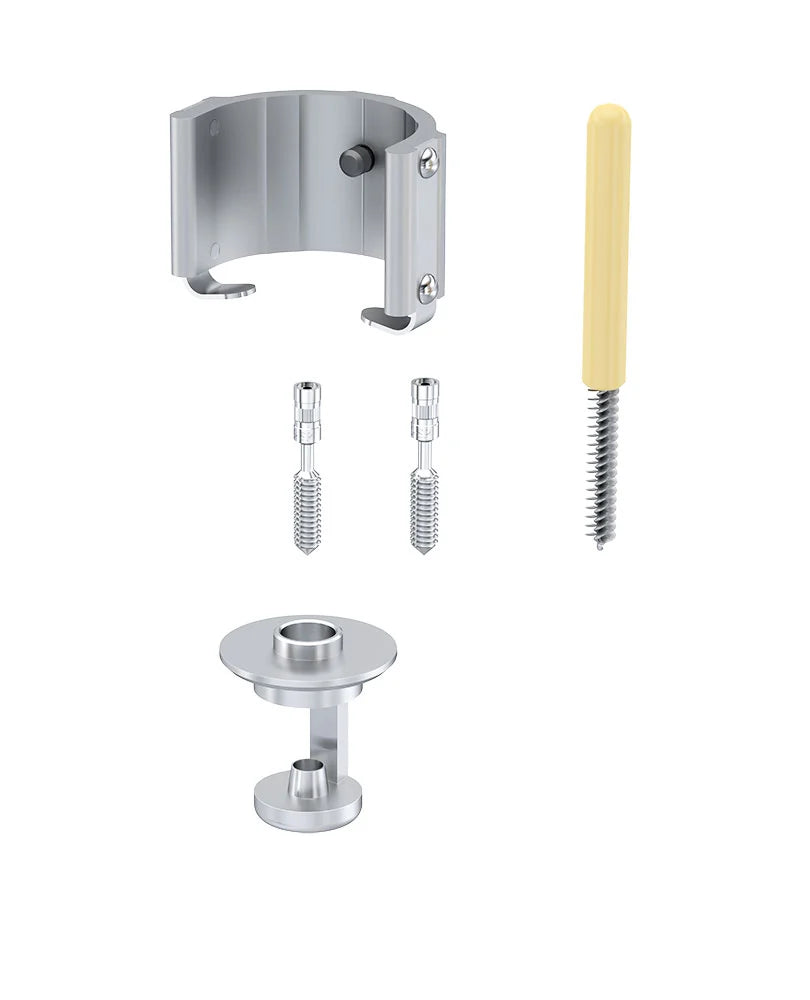

| Spindle geometry | Spiral |
| Connection | Thread M2.5 LH |
| Diameter | 6.35 mm |
| Spindle length | 41.2 mm |
| Mounting Bracket | yes |
| Working temperature max. | 300 ðC |
| Viscosity Accuracy (FSR) | 2 % |
| Viscosity Repeatibility (FSR) | 0.2 % |
| Min. FSR match ROTAVISC lo-vi | 984 mPa.s |
| Max. FSR match ROTAVISC lo-vi | 984000 mPa.s |
| Min. FSR match ROTAVISC me-vi | 10500 mPa.s |
| Max. FSR match ROTAVISC me-vi | 1100000 mPa.s |
| Min. FSR match ROTAVISC hi-vi I | 21000 mPa.s |
| Max. FSR match ROTAVISC hi-vi I | 21000000 mPa.s |
| Min. FSR match ROTAVISC hi-vi II | 84000 mPa.s |
| Max. FSR match ROTAVISC hi-vi II | 84000000 mPa.s |
| Material in contact with medium | stainless steel 1.4404 |
| Dimensions (W x H x D) | 160 x 82 x 270 mm |
| Weight | 0.527 kg |
