Working range: 2 - 30 l
Stator diameter: 65 mm
Immersion depth: 80 - 450 mm
Materials in contact with medium: FFPM, WC, AISI 316L
Suitable for solvents: yes
Max. temperature: 180 ðC
Sterilization methods: all methods
Free Shipping

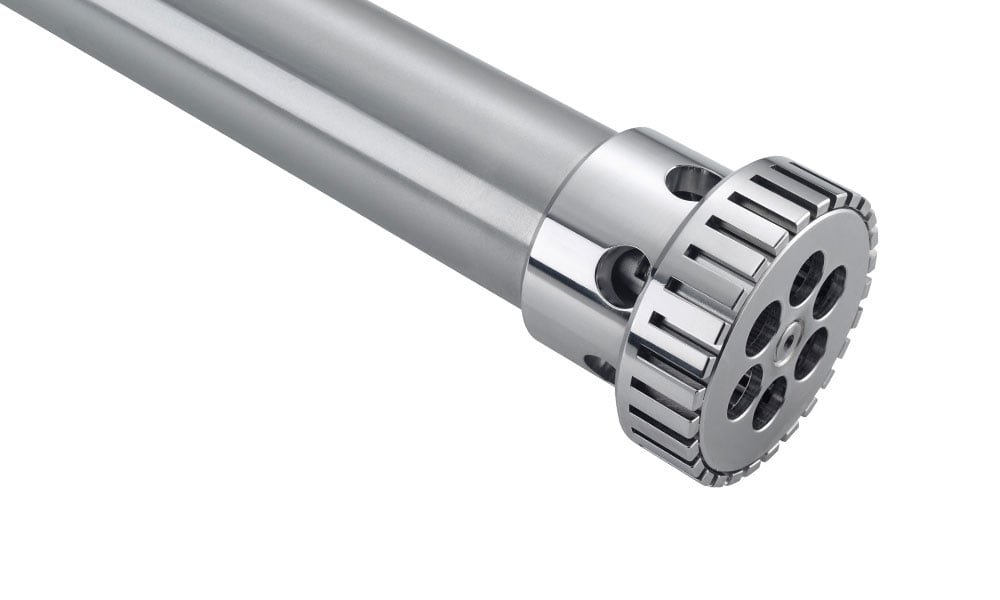

S 65 KG - HH - G 65 F Dispersing tool
Vendor:
IKA
SKU:
10010768
Availability:
In Stock
Product Type:
Dispersers
- $6,683.25 USD
- $6,683.25 USD
- Unit price
- per
Subtotal:
$6,683.25
Estimated Delivery
Jan 26 - Feb 02
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $50
Free Returns
Authorized distributor
Products Specifications
x| Volume range (H2O) | 2 - 30 l |
| Stator diameter | 65 mm |
| Rotor diameter | 58 mm |
| Gap between rotor and stator | 0.5 mm |
| Circumferential speed max. | 28.8 m/s |
| Immersion depth | 80 - 450 mm |
| Shaft length | 510 mm |
| Material in contact with medium | FFPM, WC /AISI 316L |
| pH range | 2 - 13 |
| Suitable for solvents | yes |
| Working temperature max. | 170 ðC |
| Sterilization methods | all methods |
| Vacuum | 1 mbar |
| Pressure max. | 6 bar |
| Ultimate fineness, suspensions | 5 - 20 õm |
| Ultimate fineness, emulsions | 1 - 10 õm |
| FDA conformity | yes |
| Dimensions (W x H x D) | 65 x 550 x 65 mm |
| Weight | 4.45 kg |
Overview
xS 65 KG - HH - G 65 F Dispersing tool
Suitable for dispersing instrument T 65 basic/digitalWorking range: 2 - 30 l
Stator diameter: 65 mm
Immersion depth: 80 - 450 mm
Materials in contact with medium: FFPM, WC, AISI 316L
Suitable for solvents: yes
Max. temperature: 180 ðC
Sterilization methods: all methods
Accessories
x
Product Part
x
Document
x-
Data Sheet
Data Sheet
-
Technical information S65KG-HH
Technical information S65KG-HH
