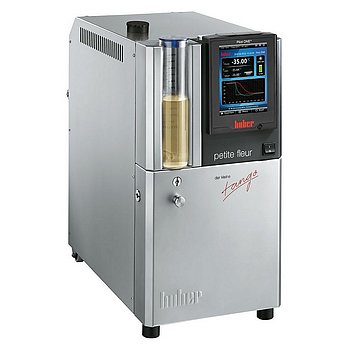

The Petite Fleur models are the smallest dynamic temperature control systems in the Unistat range. As with all Unistats, the Petite Fleur models have unique thermodynamic properties for the highest temperature control speed and precision. All models are space saving, simple to operate and can be used for a wide number of applications. 480 W of cooling capacity is available at the full pump speed (according to DIN 12876) and a further 50 W is available if the pump speed is reduced. The circulation pump with its high capacity ensures optimal delivery and delicate glass reactors are protected from damage with the soft start-up which detects and balances out changes in the viscosity within the fluid circuit. Additional equipment includes the Pilot ONE controller "Professional“ with a TFT colour display which can be removed and used as a remote control. It features a programmer, calendar/clock function, user menus, graphic representation, ramp function, calibration and many additional functions. Almost all models use environmentally friendly natural refrigerants as standard.
| Heating capacity | 1,5 kW | ||||||||||||||||||
| Cooling capacity |
|
||||||||||||||||||
| Refrigeration machine | air-cooled, natural refrigerant | ||||||||||||||||||
| Refrigerant 1st stage | R-290 (A3, H220) | ||||||||||||||||||
| Refrigerant quantity 1st stage | 0,08 kg |
| Delivery capacity pressure pump max. | 25 l/min; 0,9 bar |
| Pump connection | M16x1 AG male |
| Max. permissible viscosity | 50 mm²/s |
| Pump speed adjustable | Yes |
| Pump characteristics | Pressure pump, variable speed |
| External sensor connection | Pt100 |
| Control input | ECS ONE |
| Control output (potential-free contact) | POKO ONE |
| Interface digital | Ethernet, USB (Host u. Device), RS232 |
| Permissible ambient temperature | 5...40 °C |
| Sound pressure level | 58 dB(A) |
| Filling volume min. | 1,5 l |
| Expansion volume | 2 l |
| Power supply | 110-120V 1~ 60Hz |
| Current consumption max. | 14,5 A |
| Fuse | 16 A |
The multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.
