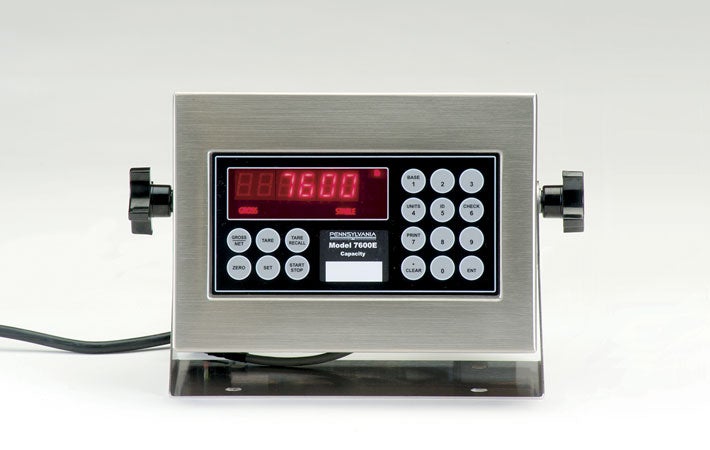

Pennsylvania Scale Company 7600E DC, 7600E Weigh Indicator with Built In Rechargeable Battery Option with 2 Year Warranty

Features:

• SS Enclosure w/U-Bracket mount for wall or shelf
• Pre-programmed Batch and Truck Scale options for easy set-up
• Direct Keyboard entry of Setpoint values and Tare Weights
• Truck IN/OUT with storage for up to 300 Tare Weights by numeric I.D.
• Smart Serial™ programmable Serial Data strings
• Tweak mode with 10 point Linearization for easy set-up and calibration
• (2) Independent Full Duplex Serial data outputs for external communication
• NTEP and Canada approved to 10,000 divisions
• Two Year Limited Warranty

Applications

• Platform Scales and CheckWeighers – Ideal replacement indicator!
• Truck Scales
• Batching Systems: platform, tank and hopper
• OEM package integrates with control systems

Enclosure: NEMA 4X w/U-Bracket

• 10 w x 6.5 h x 4 d” (w/o bracket)
• 10 w x 7.5 h x 4 d” (w/U-bracket)
• Optional OEM package (contact factory)

Specifications

• Load cell A/D Converter
• 24 bit delta sigma; 16 mv Signal Input
• Sensitivity: 0.1 uV/ Graduation
• Update: 30 updates per second
• Excitation: 5 VDC, 120 mA max
• Up to (8) 350 ohm load cells or (10) @ 1000 ohms
• Red high intensity LED display 0.6” high, (6) digits w/ annunciators
• Power: 117/217 VAC, 50/60 Hz, 20 watts, fuse 0.25A slow blow
• Optional AC/DC operation, integrated UPS, 12/24 VDC power

Data Ports, Independently Configured

• Port 1: RS232C or 20 ma Current Loop
• Port 2: RS485, RS232C or 20 mA Current Loop
• Option – Ethernet communication
• Option – Analog output select
• 4 – 20 mA
• 0 – 10 VDC
• USB

Optional Setpoint Relay Board with Convenient I/O Terminals

• Menu driven Digital Setpoints (4) for convenient batching
• Checkweigh mode controls relays Under/Accept/Over
• (4) AC/DC inputs + (4) AC/DC Outputs (Solid state Relays: 120 Volts, 0.5 amp or 24 VDC O.S.A.)
• Convenient Screw Terminals for all I/O connections
• Specify AC or DC solid state relay control

Options

• Panel mount configuration
• Wide range of Standard and Custom software options (Contact Factory)
• OEM Package for control panel or door mounting integration

Documents:

• Data Sheet
