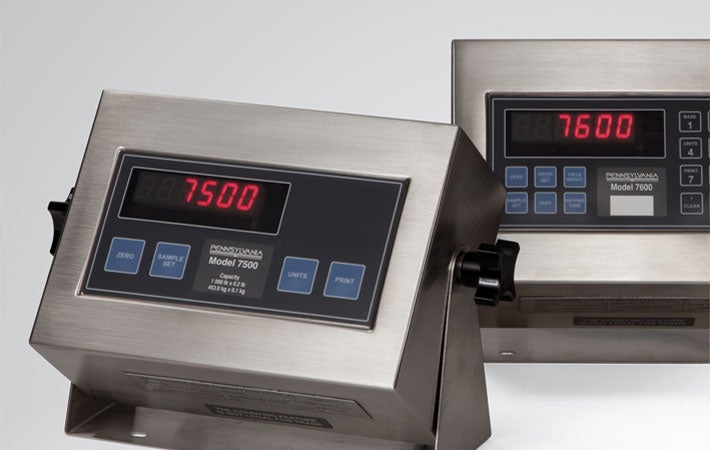

Pennsylvania Scale Company 7600/4 DCR, 7600 Count Weigh Indicator with DC Relay 24 VDC with 4 Year Warranty

Features:

• SS enclosure and U-bracket mount
• Technician's dream indicator, fast set-up
• Fully compatible with existing load cell platforms and systems
• One button counting
• Automatic Sample Update for superb results
• Powerful 16-bit microprocessor for speed and accuracy
• Audit Trail accountability feature/front panel access
• Off-the-shelf flexibility for a wide range of applications
• Count or weight setpoints for sequential batching (7600)
• Ethernet, Analog 1-10 VDC/4-20 mA, relay output options
• Exclusive Four-Year Limited Warranty outperforms the competition

Practical Technology Breakthrough

• 16,777,216 INTERNAL COUNTS + 60 Updates/Second
• PLUS+ Series universal main board for direct interchange
• Calibration protected by Access Code to prevent unauthorized access
• True HD power cord for industrial applications
• Quick disconnect OR sealed cable entry for load cell wiring
• Part of a family of indicators designed for batching, heavy capacity, weight or count

Physical Dimensions

• 9" w x 6.44" h x 4" d without U-bracket
• 11" w x 7" h x 4" d on U-bracket stand with knobs (allow 1" space behind for cable fittings)
• Optional Panel Mount (contact factory) or uncased versions

System Data Communications

• Programmable addressable RS-232
• Option ETHERNET
• Option Analog Output 0-10 VDC or 4-20 mA jumper selected
• Option Solid State Relays (AC or specify DC) for batching (7600)
• Option REMOTE DISPLAY with or without button functions, menu selected as Master or Slave via RS-232
• Option UPS Worldship, FedEx, and other emulated strings, option setting
• Programmable data string, option setting
• Label printing, option settings for Eltron/Zebra label printers
• Time/Date (7600) optional 7500

Technical Specifications

• System-friendly design for integrated applications
• Display: Red 0.56" high intensity LED
• Impedance 87-2000 Ohms, Sensitivity 0.1 microvolt/grad; Excitation 5 VDC 140ma (optional 240ma)

Approvals

• National Type Evaluation Program, NTEP: 97-009A31 to 10,000 divisions
• Canadian Weights & Measures: AM-5647 4869, Rev. 3

Documents:

• Data Sheet

4 Year Warranty
