O DIN S-1

Vendor: IKA
SKU: 25000326
Availability: In Stock
Product Type: Viscometers
$1,666.98 USD
$1,666.98 USD
Subtotal: $1,666.98

Estimated Delivery

Nov 16 - Nov 23

Free Shipping

Free standard shipping on orders over $50

Free Returns

Learn More ...

Authorized distributor

Ramo Trading

IKA

O DIN S-1

$1,666.98

IKA

O DIN S-1

$1,666.98
Products Specifications
Products Specifications
x
Spindle geometryCylinder
ConnectionThread M2.5 LH
Flow Jacketyes
Mounting Bracketyes
Sample container:Specified chamber
Working temperature max. 100 °C
Viscosity Accuracy (FSR)2 %
Viscosity Repeatibility (FSR)0.2 %
Min. FSR match ROTAVISC lo-vi6 mPa.s
Max. FSR match ROTAVISC lo-vi50000 mPa.s
Min. FSR match ROTAVISC me-vi61 mPa.s
Max. FSR match ROTAVISC me-vi50000 mPa.s
Min. FSR match ROTAVISC hi-vi I122 mPa.s
Max. FSR match ROTAVISC hi-vi I50000 mPa.s
Min. FSR match ROTAVISC hi-vi II488 mPa.s
Max. FSR match ROTAVISC hi-vi II50000 mPa.s
Material in contact with mediumstainless steel 1.4404
Dimensions (W x H x D)390 x 102 x 310 mm
Weight1.919 kg
Overview
Overview
x

O DIN S-1

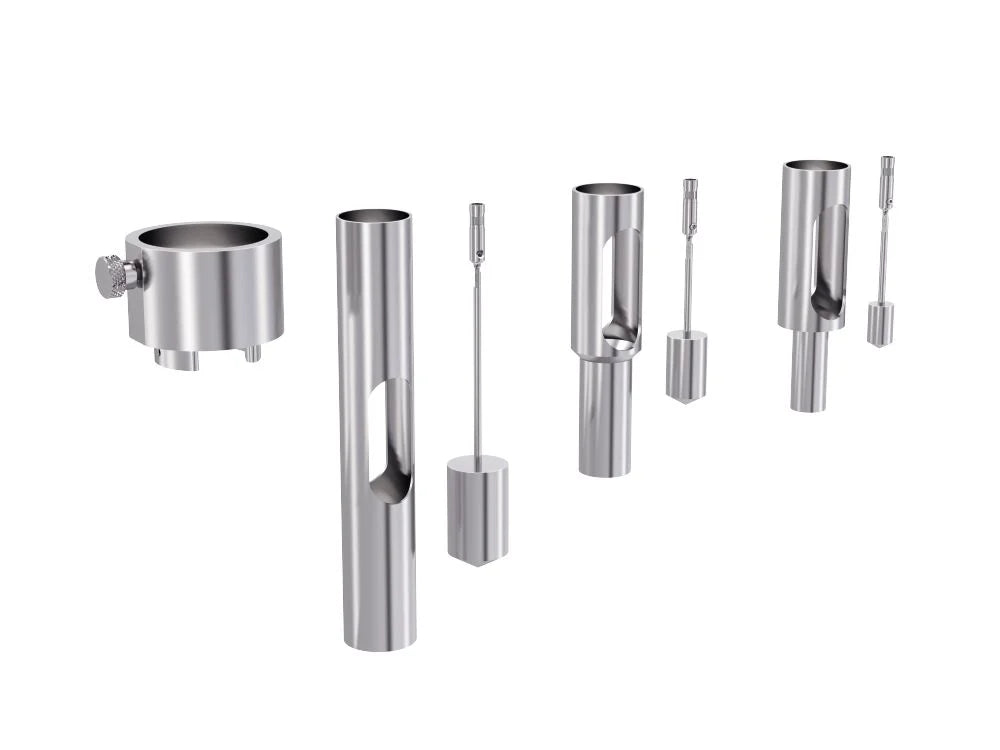

The open DIN spindle set (O-DINS-1) measures viscosities according to DIN 53019 and can be used with customer-specific vessels. The set includes a single-wall-open-jacket to quickly dive into the sample liquid as well as a coaxial cylinder system for the analysis of the sample at a specific shear rate and shear stress is included. The maximum measurable viscosity is 50 000 mPas.
