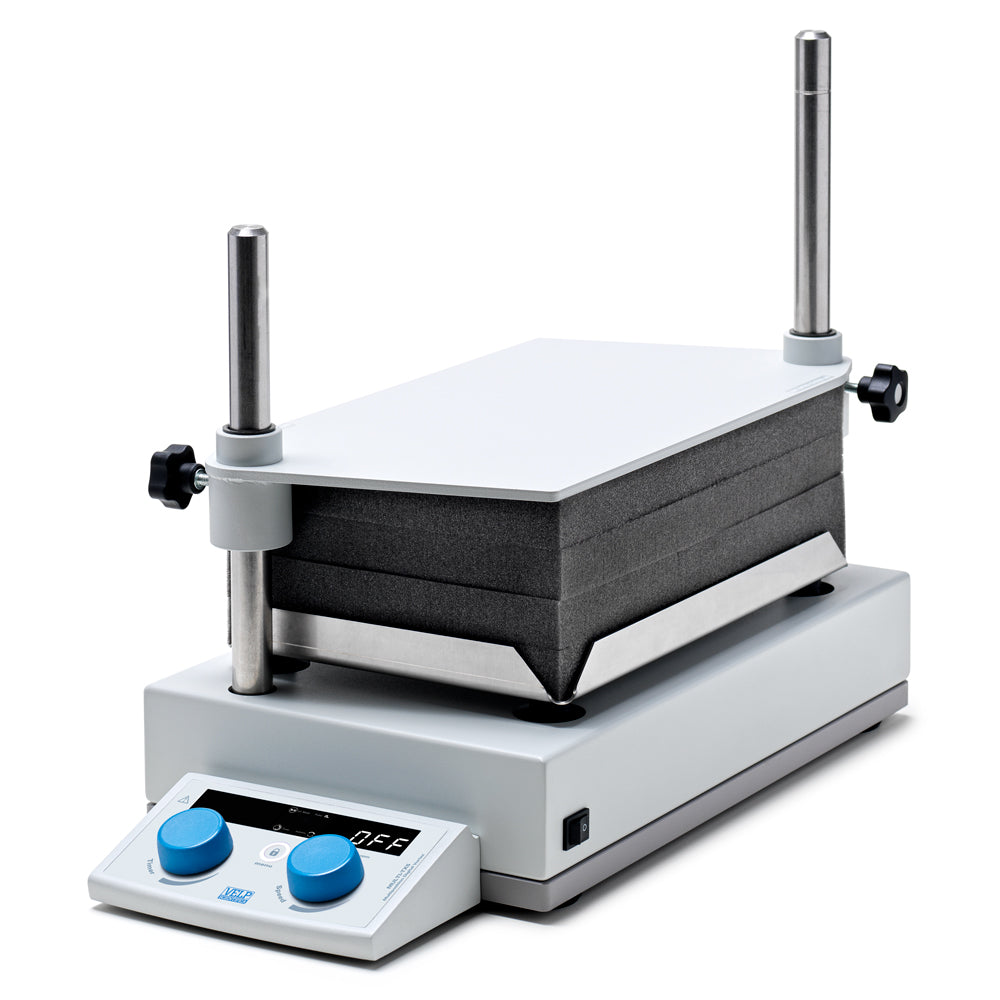

MULTI-TX5 Digital Multi-tube Vortex

MULTI-TX5 Digital Multi-tube Vortex

Exclusive digital multi-tube vortex mixer for high sample throughput. The innovative and compact design ensures maximized operating...
Vendor: Velp Scientifica
SKU: F202A0460
Availability: In Stock
Product Type: Vortexers and Shakers
$4,377.50 USD
$4,377.50 USD
Subtotal: $4,377.50
Terms & Conditions

Estimated Delivery

Jun 17 - Jun 24

Free Shipping

Free standard shipping on orders over $50

Free Returns

Learn More ...

Authorized distributor

MULTI-TX5 Digital Multi-tube Vortex

Velp Scientifica

MULTI-TX5 Digital Multi-tube Vortex

$4,377.50
MULTI-TX5 Digital Multi-tube Vortex

Velp Scientifica

MULTI-TX5 Digital Multi-tube Vortex

$4,377.50
Products Specifications
Products Specifications
x
User interface Digital
Speed control Electronic
Stirring speed 100 - 2500 rpm
SPEED SETTING REGULATION 5 rpm
Timer From 1 min to 99 h : 59 min
Timer setting steps 1 min
Autoreverse From 5 s to 99 min : 59 s
Autoreverse setting steps 1 s
Intermittent mode From 5 s to 99 min : 59 s
Intermittent mode setting steps 1 s
Pulse mode 2 s shaking, 1 s pause (cyclic)
Lock function Yes
Motor BLDC
Type of movement Orbital
Orbital diameter 3.6 mm
Working in continuous Max 2 hours
Power input 40 W
Weight 19 kg
42 lb
Support plate dimension 294 x 194 mm
11.6 x 7.6 in
Dimensions (WxHxD) 245 x 380 x 490 mm
9.6 x 14.9 x 19.3 in
Overview
Overview
x

Outstanding performance and versatility for your mixing tasks


The MULTI-TX5 Digital is the exclusive solution for all the multi-tube mixing tasks, even the most challenging ones.

The MULTI-TX5 Digital supports various foam racks for different vortexing tubes being an extremely versatile multi-tube vortex mixer to emulsify, disintegrate, mix, or homogenize samples. Typical applications include suspensions, genotyping, DNA and RNA Testing.

You can rely on the MULTI-TX5 Digital for a wide variety of mixing tasks, as it stirs solutions from 100 up to 2500 rpm thanks to the powerful brushless motor.

Vigorous as well as gentle mixing is supported with premium performance, making MULTI-TX5 Digital ideal both for microbiology tasks and R&D or quality control in diverse industries like pharma, cosmetics, food and beverage, and chemicals.

Maximized comfort and simplified operation, no matter what application


With the MULTI-TX5 Digital you can perform any mixing tasks and then change the foam rack for your next application in just a few simple steps.

Prepare the foam rack with the test tubes, then loosen both screw knobs on the closing plate and lift the plate up.

Decide whether to remove the plate or hold it on the longer shaft for streamlined manual operations.

Place the foam rack inside the foam support, lower the closing plate until it reaches the test tubes and tighten the screw knobs.

All ready for the vortex mixing to start!

Superior safety and ease-of-use for lab operators


The MULTI-TX5 Digital ensures a premium level of safety and protection for laboratory operators, as it is made with stainless steel.

The structure is carefully designed for outstanding comfort, maximized resistance, and minimized footprint over the bench.

The control panel is easily accessible and extremely intuitive.

Easily set and monitor the stirring time and the stirring speed thanks to the handy knobs and the bright easy-to-read double digital display.

The Safety Lock feature avoids any possible alterations of the working conditions or unintentional modification of the settings in order to meet all the Labs safety standards.


Programmable operation for premium laboratory efficiency


The MULTI-TX5 Digital is equipped with some exclusive and extremely advanced features that optimize unattended operation:
  • Built-in timer to meet your lab workflow – from 1 min to 99 h 59 min (1 min steps)
  • Pulse mode thanks to which the instrument shakes the samples at full speed with an immediate ramp for 2 seconds and then stops for 1 second, repeating the operation until manually stopped or the timer reaches zero
  • Continuous mode with displayed time counting up
  • Autoreverse of the stirring direction that ensures enhanced mixing capabilities – from 5 s to 99 min 59 s (1 s steps)
  • Intermittent mode programs for enhanced programming of unattended operations – from 5 s to 99 min 59 s (1 s steps)

MULTI-TX5 Digital premium functions are easy to interact with thanks to the Smart User Interface with intuitive icons on the LED display.
Accessories
Accessories
x
Cursor
Sample rack for test tube Ø13, 44 positions
Velp Scientifica

Sample rack for test tube
Ø13, 44 positions

Designed for use with the MULTI-TX5 Digital Vortex, this durable and stable rack securely holds 44 test tubes (Ø13), ensuring organized and efficient sample handling during mixing and experiments.
$120.00
Sample rack for test tube Ø10, 44 positions
Velp Scientifica

Sample rack for test tube
Ø10, 44 positions

Designed for use with the MULTI-TX5 Digital Vortex, this durable and stable rack securely holds 44 test tubes (Ø 10 mm), ensuring organized and efficient sample handling during mixing and experiments.
$120.00
Sample rack for test tube Ø16, 44 positions
Velp Scientifica

Sample rack for test tube
Ø16, 44 positions

Designed for use with the MULTI-TX5 Digital Vortex, this durable and stable rack securely holds 44 test tubes (Ø16), ensuring organized and efficient sample handling during mixing and experiments.
$120.00
Sample rack for test tube Ø29, 14 positions
Velp Scientifica

Sample rack for test tube
Ø29, 14 positions

Designed for use with the MULTI-TX5 Digital Vortex, this durable and stable rack securely holds 14 test tubes (Ø29), ensuring organized and efficient sample handling during mixing and experiments.
$120.00
Sample rack for test tube Ø25, 14 positions
Velp Scientifica

Sample rack for test tube
Ø25, 14 positions

Designed for use with the MULTI-TX5 Digital Vortex, this durable and stable rack securely holds 14 test tubes (Ø25), ensuring organized and efficient sample handling during mixing and experiments.
$120.00
Sample rack for test tube Ø12, 44 positions
Velp Scientifica

Sample rack for test tube
Ø12, 44 positions

Designed for use with the MULTI-TX5 Digital Vortex, this durable and stable rack securely holds 44 test tubes (Ø12), ensuring organized and efficient sample handling during mixing and experiments.
$120.00
