MIX.IX Stirring attachment

MIX.IX Stirring attachment

Vendor: IKA
SKU: 20103426
Availability: In Stock
Product Type: Magnetic Stirrers
$337.61 USD
$337.61 USD
Subtotal: $337.61
Terms & Conditions

Estimated Delivery

Jun 05 - Jun 12

Free Shipping

Free standard shipping on orders over $50

Free Returns

Learn More ...

Authorized distributor

MIX.IX Stirring attachment

IKA

MIX.IX Stirring attachment

$337.61
MIX.IX Stirring attachment

IKA

MIX.IX Stirring attachment

$337.61
Products Specifications
Products Specifications
x
Number of stirring positions9
Stirring position distance30 mm
Speed deviation of individual stirring positions0 %
Stirring quantity max. per stirring position (H2O)0.060 l
Stirring quantity min. per stirring position (H2O)0.008 l
Vessel diameter min.12 mm
Vessel diameter max.27.5 mm
Width95 mm
Height21 mm
Weight0.460 kg
Overview
Overview
x

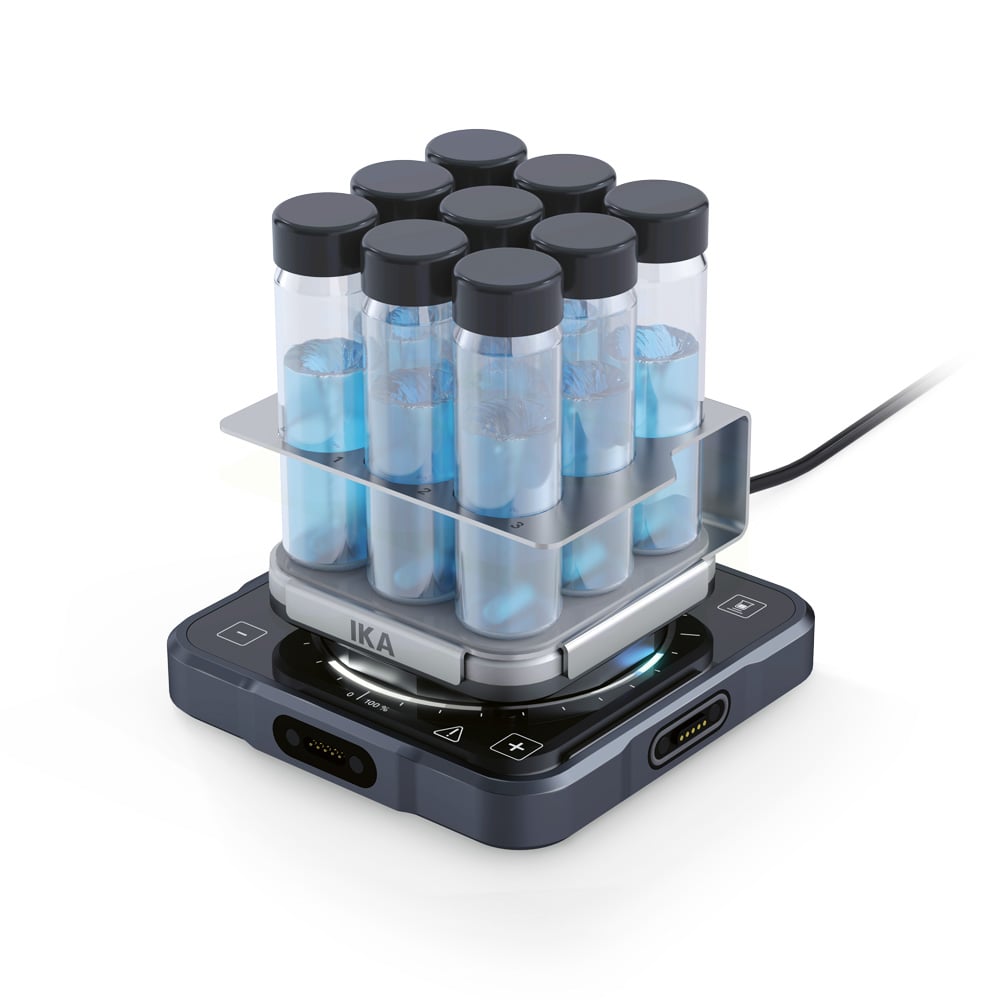

MIX.IX Stirring attachment

With the MIX.IX multi-position stirring attachment for IKA MIXSTER, the number of stirring positions can be increased from 1 to 9. The attachment is perfectly suited for mixing in small sample vessels with diameters of 23 - 28 mm and volumes of 8 - 60 ml.

Each of the nine stirring positions has its own magnetic drive, which enables powerful mixing in each individual sample. Thus, up to 3000 rpm per stirring position can be achieved in aqueous solutions. Mixing of higher viscous media at lower speeds is also easily possible with the MIX.IX attachment. Special elliptical rare earth magnetic stirring bars (IKAFLON 10 / 15 / 20 power ellipse) are available as accessories for perfect magnetic connection at viscosities above 100 mPas.

The MIX.IX attachment is fixed to the base unit with the integrated adhesive pad and can be mounted and dismounted as often as required.

For easier handling and to prevent the sample vessels from falling over, the use of the vessel holders MIX.IX.28 and MIX.IX.23 is recommended (available as accessories).

Scope of delivery
  • IKAFLON 10 round (5 pcs.) (2 pcs.)
