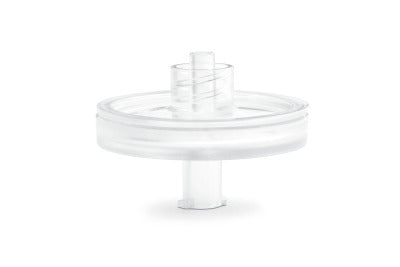

Minisart® HY PTFE Syringe Filter
Individually packed and sterile Minisart® Standard HY syringe filters Type S6596 with a pore size of 0.2µm...
Vendor:
Sartorius
SKU:
S6596------FMOSK
Availability:
In Stock
Product Type:
Syringe Filters
- $155.23 USD
$176.00 USD- $155.23 USD
- Unit price
- per
Subtotal:
$155.23
Estimated Delivery
Oct 29 - Nov 05
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $50
Free Returns
Authorized distributor
Products Specifications
xApplications
-
ApplicationSterilization and cleaning of air, gases and venting
-
Application Area
-
Venting
-
Moisture barrier
- Sterile filtration
-
Venting
Connections (Physical)
-
Connector InletFemale Luer Lock
-
Connector OutletMale Luer Lock
Dimensions
-
Filter Diameter⌀ 26 mm
-
Filtration Area5.3 cm²
General Specifications
-
Filter Paper/Membrane ColorClear
-
Flow Rate≥ 2000 mL/min for air at 0.1 bar (1.45 psi)
-
Total ThroughputUp to 200 mL
-
pH Range4.0 – 8.0
Materials of Construction
-
Housing MaterialMethacrylate butadiene styrene (MBS)
-
Membrane MaterialPolytetrafluorethylene (PTFE)
Operating Conditions
-
Maximum Allowable Working Temperature60 °C (140 °F)
-
Maximum Operating Pressure4.5 bar (65 psi)
-
Operating Pressure4.5 bar (65 psi)
Physicochemical Information
-
Bubble Point≥ 1.1 bar (16 psi) with ethanol
-
Burst Pressure≥ 7.0 bar (102 psi)
-
Pore Size0.2 µm
-
WettabilityHydrophobic
Product Information
-
BrandMinisart® HY
-
Device TypeSyringe Filters
-
Pack Size50
-
PackagingSingle blister packed
-
Sample TypeAir/Gas
Sterility/Purity
-
Delivery ConditionSterile
-
Sterilization MethodEthylene oxide
Volume
-
Hold-up Volume≤ 100 – 150 µL
Overview
xIndividually packed and sterile Minisart® Standard HY syringe filters Type S6596 with a pore size of 0.2µm are optimal for immediate usage whenever sterile filtration or venting is needed. Due to its hydrophobic nature the PTFE membrane functions as a water barrier and does not become wetted by aerosols. This keeps the hydrophobic venting filter permeable for gas or air! The housing of the filter is made of MBS (Methacrylate butadiene styrene) which has a limited compatibility with alcohols but is free of phthalates. Minisart® Standard Syringe Filters without CE marking are not for medical use.
- Sterile and ready-to-use
- ETO sterilized
- Suitable as venting filter
Accessories
x
Product Part
x
Document
x-
Brochure
Minisart® Syringe Filters — The Easy Choice – Clean and Safe
-
User Manual
Instructions for Use Minisart® High Flow | NML | Air | HY | Acticosart Sartorius Syringe Filters for Liquid Filtration and Venting
-
User Manual
Instructions for Use Minisart® NML, SRP & HY Sartorius Syringe Filters for Filtration Applications and Sterilization of Air
