Volume: 5.0 l
Material in contact with medium: AISI 316L
Including stainless steel metal adapter M 16x1 (Male) for connection of temperature hoses or quick connection adapters.
Free Shipping
LR 5000.3 Reactor vessel
Vendor:
IKA
SKU:
20128802
Availability:
In Stock
Product Type:
High Viscosity Reactors
- $9,705.36 USD
- $9,705.36 USD
- Unit price
- per
Subtotal:
$9,705.36
Estimated Delivery
Jan 25 - Feb 01
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $50
Free Returns
Authorized distributor
Products Specifications
x| Useable volume max. | 5000 ml |
| Working temperature | -50 - 230 ðC |
| Pressure max. | atmospheric pressure |
| Attainable vacuum | 25 mbar |
| Material in contact with medium | AISI 316L |
| Fill level at nominal volume | 175 mm |
| Vessel inner diameter | 200 mm |
| Vessel outer diameter | 254 mm |
| Height (room dimension) | 289 mm |
| Width (room dimension) | 259 mm |
| Depth (room dimension) | 254 mm |
| Flange dimension | DN200 |
| Flange collar diameter | 204 mm |
| Bottom shape | Torispherical head |
| Bottom drain | yes |
| Bottom valve | Standard valve |
| Bottom drain outlet inner diameter | 20 mm |
| Bottom drain outlet outer diameter | 25 mm |
| Bottom drain shape | Straight with olive |
Overview

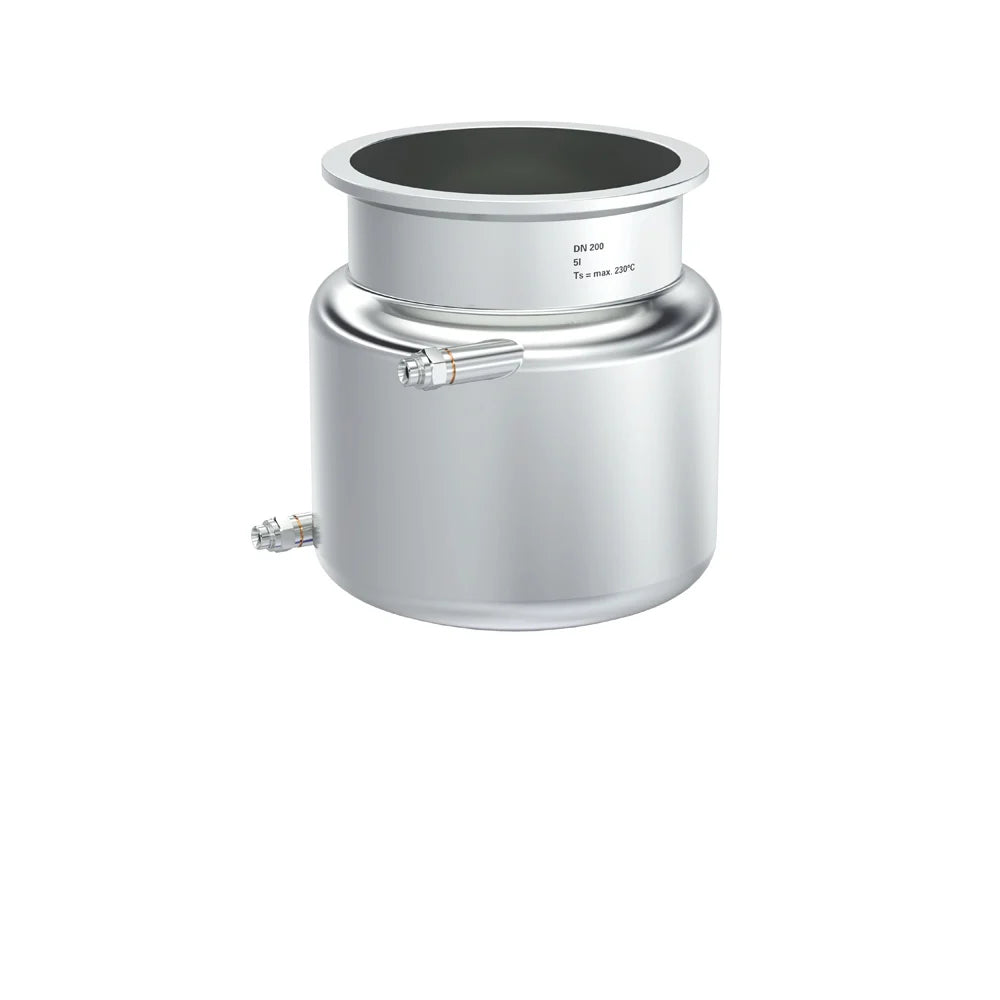

xLR 5000.3 Reactor vessel
Double-walled stainless steel reactor vessel for use with the LR-5.ST laboratory reactor.Volume: 5.0 l
Material in contact with medium: AISI 316L
Including stainless steel metal adapter M 16x1 (Male) for connection of temperature hoses or quick connection adapters.
