HTS 5

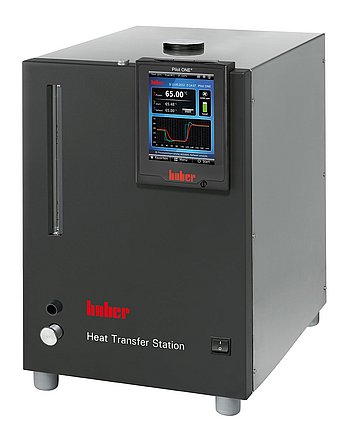

Performance Characteristics The HTS has no mechanical refrigeration but is fitted with a circulation pump and a...
Vendor:
Huber
SKU:
3070.0001.01
Availability:
In Stock
Product Type:
Heat exchanger systems
- $13,680.00 USD
- $13,680.00 USD
- Unit price
- per
Subtotal:
$13,680.00
Estimated Delivery
Jan 25 - Feb 01
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $50
Free Returns
Authorized distributor
Products Specifications
x| Delivery capacity pressure pump max. | 25 l/min; 2,5 bar |
| Pump connection | G3/4 AG male |
| Max. permissible viscosity | 50 mm²/s |
| Pump speed adjustable | no |
| Pump type | B |
| Pump characteristics | Pressure pump, speed not variable |
| External sensor connection | Pt100 |
| Interface digital | Ethernet, USB (Host u. Device), RS232 |
| Permissible ambient temperature | 5...40 °C |
| Filling volume min. | 3,5 l |
| Expansion volume | 2 l |
| Cooling water connection | G1/2 male |
| Cooling water differential pressure min. | 2 bar |
| Cooling water pressure max. | 6 bar |
| Power supply | 200-240V 1~/2~ 50/60Hz |
| Current consumption max. | 2,5 A |
Overview
xFunctions overview
- Efficient circulation pump
- Pilot ONE controller with 5.7“ touchscreen and comfortable menu navigation
- RS232 interface
- Powerful circulation pump
- Pt100 external sensor connection
- Efficient thermal transfer
- Low cooling water usage
- Application protection with cooling stage separation
- Optionally available with heating and over temperature protection
Product impressions
Controller
The multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.
