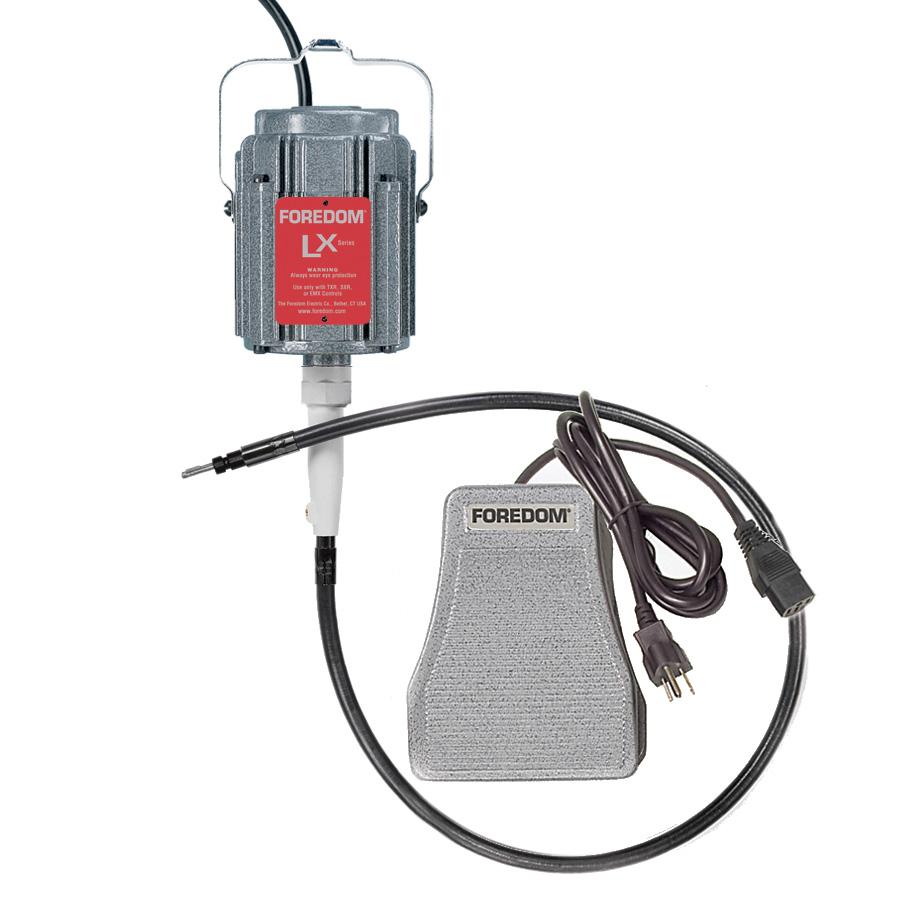

Foredom M.LX-SXR LX Hang Up Motor, Metal Foot Control, 230V

Here our high torque/low speed flex shaft model, the M.LX Hang-up style Motor, is teamed up with the C.SXR-2 foot operated Speed Control in metal housing.
This is a 230 Volt Motor-Control combination with a Two Year Limited Warranty.

M.LX Motor permanent magnet motors are specifically designed for high torque/low speed applications, offering more power for jobs like stone setting, wax modeling, and pearl drilling.
M.LX, M.LXM, and M.LXB ball bearing motors feature full power and torque from start up and throughout the entire speed range up to 5,000 rpm. They are ideal for use with Foredoms drill presses. They also are well matched with the H.15 and H.15D Hammer Handpieces. It comes equipped with a motor bale for hanging, and our standard 39" long key tip shafting for connecting to any of Foredoms quick disconnect handpieces.

Foredoms permanent magnet motors require the use of a TXR-2, SXR-2, or EMX-2 speed control. Damage will result if the motor is connected to any other speed control.
C.SXR-2 Speed Control foot operated speed control comes in a metal housing and the extra weight provides added stability and control. It features the same durable, solid state electronics as the C.TX2. The ergonomics allow precise and reliable speed control with your foot. The C.SXR-2 has special electronics that converts AC current from an electrical outlet to DC current- the type required by the motor. It also has a special plug that fits the motor's shielded plug.

• For use with 230 Volt M.LX, M.LXB, M.LXH and M.LXBH motors.
• 6-3/4" long, 4" wide, 2-3/8" high, ship wt-6 lbs./2.7 kg.
• Also comparable with this motor are: Foredom's C.TXR-2 and C.EMX-2 controls.

Product Specifications

• Weight: 12 lbs
• Dimensions: 20 x 13 x 6 in
• Power Plug Option: -2 - N. American, -21 - United Kingdom, -22 - Continental Europe, -26 - Australia
