| Heating capacity | 1,5 kW | ||||||||||
| Cooling capacity |
|
||||||||||
| Refrigeration machine | air-cooled, natural refrigerant | ||||||||||
| Refrigerant 1st stage | R-290 (A3, H220) | ||||||||||
| Refrigerant quantity 1st stage | 0,072 kg |
| Delivery capacity pressure pump max. | 27 l/min; 0,7 bar |
| Delivery capacity suction pump max. | 22 l/min; 0,4 bar |
| Pump connection | (Option, #19607) |
| Pump speed adjustable | Yes |
| Pump characteristics | Pressure and suction pump, variable speed |
| External sensor connection | Pt100 |
| Interface digital | Ethernet, USB (Host u. Device), RS232 |
| Permissible ambient temperature | 5...40 °C |
| Bath opening WxD/BD | 290 x 329 / 200 |
| Bath volume | 23,5 l |
| Filling volume min. | 17 l |
| Power supply | 110-120V 1~ 50/60Hz |
| Current consumption max. | 15 + 3,8 A |

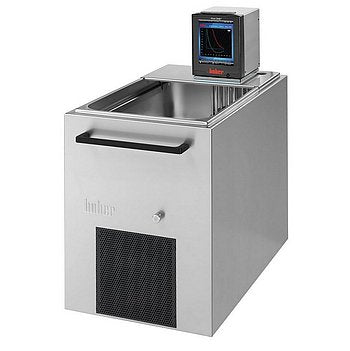

The multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.
