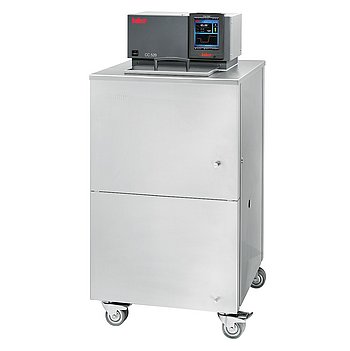

CC-520w
Performance Characteristics Refrigeration bath circulators are suitable for controlling the temperature of externally connected applications and thermoregulation...
Vendor:
Huber
SKU:
2022.0002.01
Availability:
In Stock
Product Type:
CC models, to -90°C
- $47,925.00 USD
- $47,925.00 USD
- Unit price
- per
Subtotal:
$47,925.00
Estimated Delivery
Feb 07 - Feb 14
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $50
Free Returns
Authorized distributor
Products Specifications
x| Heating capacity | 3,6 kW | ||||||||||||
| Cooling capacity |
|
||||||||||||
| Refrigeration machine | water-cooled, CFC- and HCFC-free | ||||||||||||
| Refrigerant 1st stage | R-452A (A1, H280) | ||||||||||||
| Refrigerant quantity 1st stage | 1,65 kg |
| Delivery capacity pressure pump max. | 25 l/min; 0,7 bar |
| Delivery capacity suction pump max. | 18,5 l/min; 0,4 bar |
| Pump connection | M16x1 AG male |
| Max. permissible viscosity | 50 mm²/s |
| Pump speed adjustable | Yes |
| Pump characteristics | Pressure and suction pump, variable speed |
| External sensor connection | Pt100 |
| Interface digital | Ethernet, USB (Host u. Device), RS232 |
| Permissible ambient temperature | 5...40 °C |
| Bath opening WxD/BD | 270 x 150 / 200 |
| Bath volume | 17 l |
| Filling volume min. | 15 l |
| Cooling water connection | G1/2 male |
| Cooling water consumption at 15°C, flow 15°C | 288 l/h |
| Cooling water differential pressure min. | 3 bar |
| Cooling water pressure max. | 6 bar |
| Power supply | 460V 3~ 60Hz |
| Current consumption max. | 13 A |
| Fuse | 3x16A |
Overview
xFunctions overview
- Pilot ONE controller with Plug & Play technology
- Precise temperature control
- 5.7“ touchscreen and comfortable menu navigation
- Overtemperature and low level protection
- Safety class III/FL (DIN 12876)
- Powerful pressure/suction pump
- Programmer with calendar and clock functions
- 2-point calibration
- RS232 interface and Pt100 connection
Product impressions
Controller
The multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.
Read more
Accessories
x
Displacement insert CC-510w, CC-515w, CC-520,
CC-520w, CC-525w, CC-820, CC-820w
Dimensions (L x W x H): 265 x 145 x 185 mm
$1,062.00
Temperature sensor Pt100, open, Ø
8 mm, 170 mm
Sensor open in protective pipe Ø 8 mm
(Pt100) with 1,5 m cable
Sensor length: 170 mm, Ø 8 mm
$963.00
Temperature sensor Pt100, closed, Ø
8 mm, 400 mm
with 1,5 m cable
Sensor length: 400 mm, Ø 8 mm
$778.50
Temperature sensor Pt100, closed, Ø
6 mm, 200 mm
with 1,5 m cable
Sensor length: 200 mm, Ø 6 mm
$742.50
Temperature sensor Pt100, closed, Ø
6 mm, 180 mm
with 1,5 m cable
Sensor length: 180 mm, Ø 6 mm
$675.00
Drain valve, universal
for all baths/thermostats
connection screw G3/8"
with sealing cap
(not suitable for polycarbonate baths 112A, 118A, 130A)
$270.00
Connection cable for Pilot ONE
Connection cable for Pilot ONE for using the controller as remote control (without RS232)
Length: 3m
Using #16160 as remote control does not allow communication via RS232. If required, please u...
$189.00
Mounting bracket for wall mounting
of Pilot ONE
Mounting bracket for mounting the Pilot ONE wall bracket at the side of the device
$126.00
Hose, pressureless NW12
Temperature range: -20...180°C
Length: variable
Max. pressure at 20°C: low pressure
Internal diameter: 12 mm
Material: FKM
Sold per meter
$342.00
Hose, pressureless, PVC-60-NW12
Temperature range: -20...60°C
Length: variable
Internal diameter: 12 mm
Material: PVC
Sold per meter
$51.56
Hose, pressureless NW8
Temperature range: -20...60°C
Length: variable
Internal diameter: 8 mm
Material: PVC
Sold per meter
$50.72
Hose, pressureless NW12
Temperature range: -25...110°C
Length: variable
Max. pressure at 20°C: low pressure
Internal diameter: 12 mm
Material: NBR
Sold per meter
$64.24
Hose, pressureless NW8
Temperature range: -25...110°C
Length: variable
Max. pressure at 20°C: low pressure
Internal diameter: 8 mm
Material: NBR
Sold per meter
$53.25
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Hose, pressureless NW12
Temperature range: -40...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of ...
$99.00
Product Part
x
Related Products
Recently Viewed Products
- Choosing a selection results in a full page refresh.
