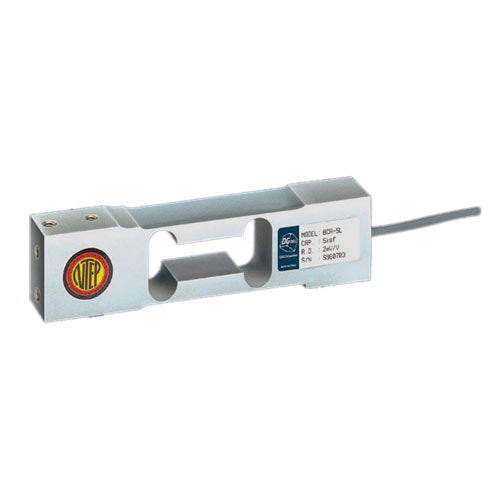

| SKU | BCA Series |
|---|---|
| Capacity | 5 kg , 10 kg , 15 kg , 20 kg , 30 kg , 3K , 75 kg , 100 lb |
| Construction | Aluminum Alloy |
| Rated Output | 2 mV/V ± 10% |
| Combined Error | < 0.02% R.O. |
| Repeatability | < 0.01% R.O. |
| Creep | < 0.017% R.O. |
| Temperature Effect on Zero | 0.014 |
| Recommended Excitation Voltage | DC 10V |
| Maximum Excitation Voltage | DC 15V |
| Zero Balance | ± 5% R.O. |
| Input Resistance | 400 ± 20 ohms |
| Output Resistance | 350 ± 3.5 ohms |
| Insulation Resistance | > 2000 Megohms |
| Cable Length | 10’ / 3.3m - 4 or 6 conductor with shield |
| Compensated Temp Range | -10°C - +40°C |
| Safe Overload | 150% Rated Capacity |
| Protection Class | IP 65 |
| Country of Manufacture | South Korea |
