ARE 5 Hot Plate Stirrer

ARE 5 Hot Plate Stirrer

Robust hotplate stirrer designed to guarantee safety, powerful stirring and excellent heating for basic applications for industrial...
Vendor: Velp Scientifica
SKU: F20500560
Availability: In Stock
Product Type: Heating Magnetic Stirrers
$763.75 USD
$763.75 USD
Subtotal: $763.75
Model: 230 V / 50-60 Hz-0
Terms & Conditions

Estimated Delivery

Jun 09 - Jun 16

Free Shipping

Free standard shipping on orders over $50

Free Returns

Learn More ...

Authorized distributor

ARE 5 Hot Plate Stirrer

Velp Scientifica

ARE 5 Hot Plate Stirrer

$763.75
ARE 5 Hot Plate Stirrer

Velp Scientifica

ARE 5 Hot Plate Stirrer

$763.75
Model: 230 V / 50-60 Hz-0
Products Specifications
Products Specifications
x
User interface Analog
Housing material: Epoxy painted aluminum structure
Plate material: Aluminum alloy
Plate diameter: 135 mm
Stirring volume 15 L
Stirring speed range 100 - 1500 rpm
Speed control Analog
Motor Brushless
Torque compensation SpeedServo™
Temperature range Room temp - 310 °C
Heating control Analog
Hot plate warning system Illuminated Icon (when the temperature is above 50 °C)
Protection class IP 42
Power input 630 W
Weight: 1,7 kg (3,7 lb)
Dimensions (WxHxD): 160x270x85 mm (6,3x10,6x3,3 in)
Overview
Overview
x

Easy-to-use, Safe and Designed to Last

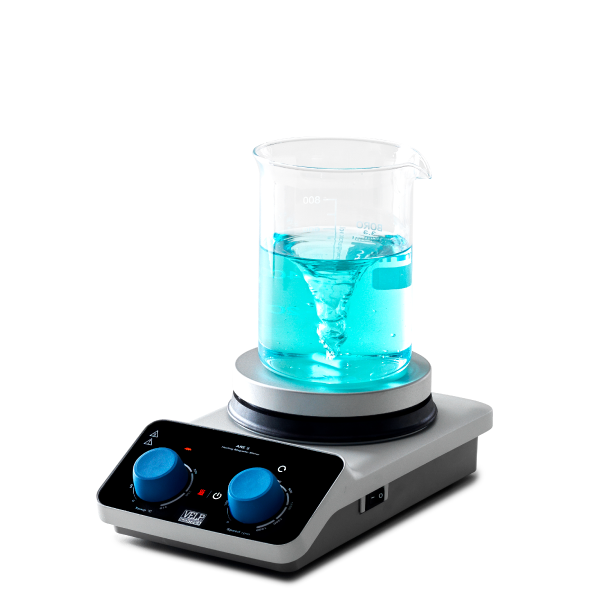

The ARE 5 Hotplate Stirrer is the product of choice since 1983 for basic heating and stirring laboratory requirements. A reference for many laboratories around the world ranging from universities and research centers to industrial laboratories.

The 135 mm diameter aluminum alloy top plate ensures great temperature homogeneity and optimum heat transfer across the entire surface.

Two illuminated indicators always inform the operator when the heating is on. Furthermore, the icon stays on when the temperature of the plate is above 50°C even if the instrument is switched off.

The internal electronic parts are protected by the insulating disk, which, together with the robust die-cast aluminum housing, enables the ARE 5 to withstand even the most demanding laboratory environments and applications, such as when working with cold media (below 0°C).

In addition, the ARE 5 hotplate stirrer is IP42 certified and it is backed up by a 3-year warranty (online product registration required).

Consistent stirring and heating performance for general lab applications


You can rely on the robust ARE 5 and its powerful brushless motor for everyday laboratory applications stirring volumes up to 15 liters (H2O).

By turning the left knob of the ARE 5 it is possible to adjust the temperature up to 310 °C, whilst the right one allows setting the stirring speed from 100 up to 1500 rpm.

The ARE 5 is equipped with VELP-engineered SpeedServo™ torque compensation technology that ensures constant speed even when the viscosity of the medium changes.
