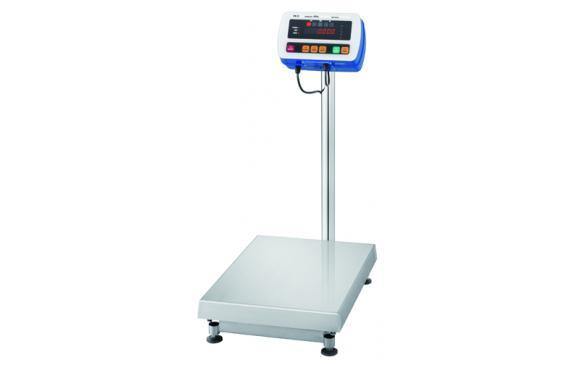

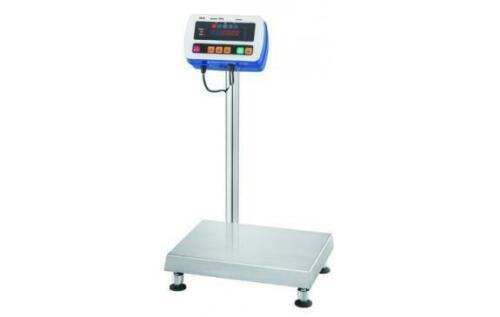

PrepMate MS1830-FSNK MultiStation 30" Prep Station w/ SS Top

Advanced Washdown Platform Scale for Food Processing Applications Where Cleanliness and Sanitation are Critical

• NTEP Certified and Measurement Canada approved
• IP69K rated for the ultimate in dust, water and condensation protection
• Bright high visibility multicolored LED display with comparator display built-in

Key Features:

• Dust and Water
• LED Display
• Piece Counting Function
• Comparator Function
• Auto Power OFF
• Battery Operation (Optional)
• RS-232C (Optional)
• 1 Year US Warranty

Quick and Easy Measurements

• High-speed weighing in 1 second to increase your work efficiency
• Quickly determine if a weight is below, within or above a target with built-in tricolor LED comparator lights
• Large, LED screen shows all important information at a glance even in dimly lit areas
• Automatically powers off when not in use to extend battery life

Durable and Hygienic Construction

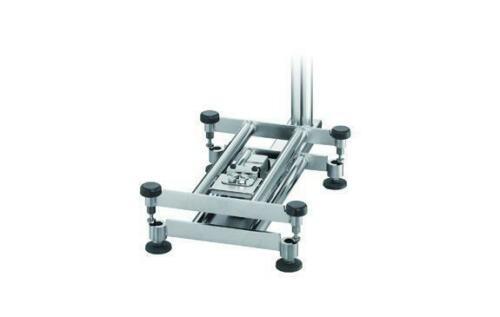

• Robust, stainless steel platform and frame along with hermetically sealed, stainless steel load cell prevents corrosion and is reliable even in harsh environments
• IP69K rated and can be used under extremely harsh wet conditions and makes for easy cleaning to reduce contamination
• NSF listed to meet HACCP requirements to ensure the quality and safety of all food products
• Touch sensitive, polycarbonate keys prevent damage from sharp objects

Trusted Accuracy

• Legal for Trade options to meet industry compliance
• Multiple built-in functions to streamline your weighing processes including: Piece Counting and Checkweighing

Construction

• Stainless Steel (304) Platform
• Stainless Steel (304) Frame and Column
• ABS Molded Plastic Indicator

Weighing Units

• kg, g, lb, oz, and pcs

Specifications:

• Capacity: 330lb / 150kg / 5200oz
• Readability: 0. 05lb / 0. 02kg / 1oz
• Number of samples: 5 (can be changed to 10, 20, 50 or 100) pieces. Increasing sample count improves accuracy.
• Maximum count: 150,000 pcs
• Minimum unit weight: 0. 1g
• Repeatability (Std. Deviation): 0. 05lb
• Linearity: ?0. 01lb
• Sensitivity drift: ?20ppm / Degree C (5 Degree C to 35 Degree C / 41 Degree F to 95 Degree F)
• Display: Display of weight: 7 segment LED display (character height 14. 6 mm) Comparator lights: Red/Yellow/Green/Yellow/Red LEDs
• Display update: 10 times per second
• Operating conditions: -10 Degree C to 40 Degree C / 14 Degree F to 104 Degree F, 85% R. H. or less (non- condensing)
• Power supply: AC main (100V-240V) or SLA Battery (option), Approximately 90 hours operation
• Pan Size: 300 x 380 mm / 11. 8 x 15. 0 in.
• Dimensions: 11. 8 x 23. 7 x 28. 4in / 390 x 751 x 722. 5mm
• Weight (approximate): 13. 0 kg / 28. 7 lb
• Shipping Weight: 17. 4 kg / 39 lb
• Calibration Weight: 300lb / 150kg
