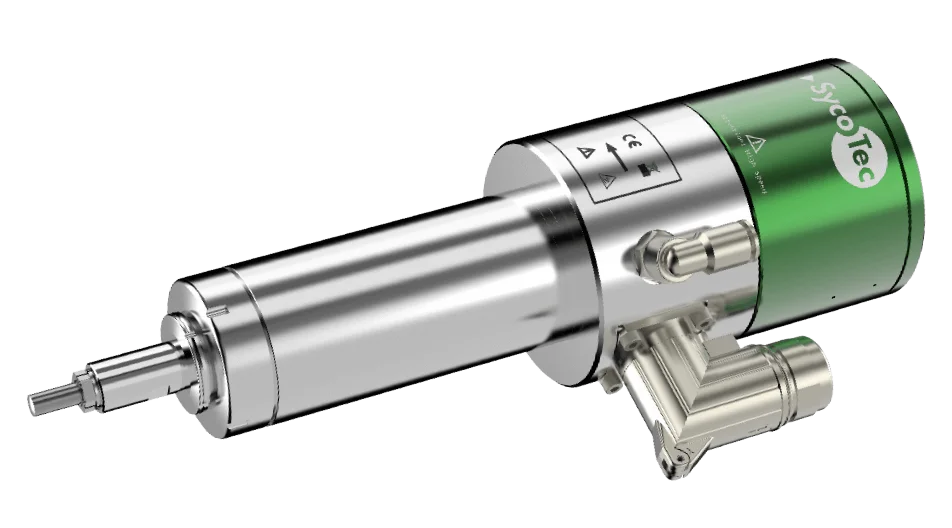

5045 AC-C5-60-07 HF Motor Spindle – 60,000 RPM, 180V, IP55
Vendor:
Sycotec
SKU:
20020700
Availability:
In Stock
- $5,943.60 USD
- $5,943.60 USD
- Unit price
- per
Subtotal:
$5,943.60
Estimated Delivery
Feb 10 - Feb 17
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $50
Free Returns
Authorized distributor
Products Specifications
x| Application | Drilling, milling, grinding, engraving |
|---|---|
| Housing diameter | 45 mm |
| Motor type | 3-phase asynchronous motor |
| Speed range | 6,000 – 60,000 min-1 |
| Frequncy | 100 – 1.000 Hz |
| Voltage | 180 V |
| Current | S1: 3.5 A, max. 13 A |
| Torque | S1: 11.5 Ncm, max. 19 Ncm |
| Power | S1: 650 W, max. 1,280 W |
| Motor protection | PTC |
| Weight | 2,6 kg |
| Bearing | 3 x hybrid, lubricated for life |
| Concentricity | ≤ 1.5 µm |
| Chuck clamping range | Ø max. 6 mm |
| Collet type | C5 |
| Collet stop | Yes |
| Tool change | Pneumatic Direct 3.5 – 4 bar Hose ∅ 6 mm |
| Taper cleaning | Yes |
| Cooling system | Cooling through clamping device |
| Protection class | IP 55 |
| Protected against dirt and cooling lubricants | Sealing air |
| Housing material | Stainless steel |
| Sensors | Motor temperature sensor |
| Cable / connector type | EM-C16 |
| Inverter recommendation | e@syDrive 4638 Unidrive M300-HS30 |
Overview
xDiscover the first-class HF motor spindle for industrial applications in CNC systems with outstanding parameters. Our high-frequency motor spindle offers precise performance, reliability and efficiency to meet the requirements of demanding manufacturing processes. Learn more about the optimal integration of this spindle into your CNC system and increase the productivity of your operation with state-of-the-art technology.
Accessories
xProduct Part
x
Document
x-
CAD
Motor-Spindle-5045-AC-C5.stp–\t3.37 MB
-
Data sheet
DS_5045-AC-C5-60-07_2.002.0700_2025-01.pdf–\t275.21 KB
-
Certificates
KE_Spindel_5045_4538-10.pdf–\t304.99 KB
-
Certificates
RoHS_Spindel_5045.pdf–\t267.56 KB
