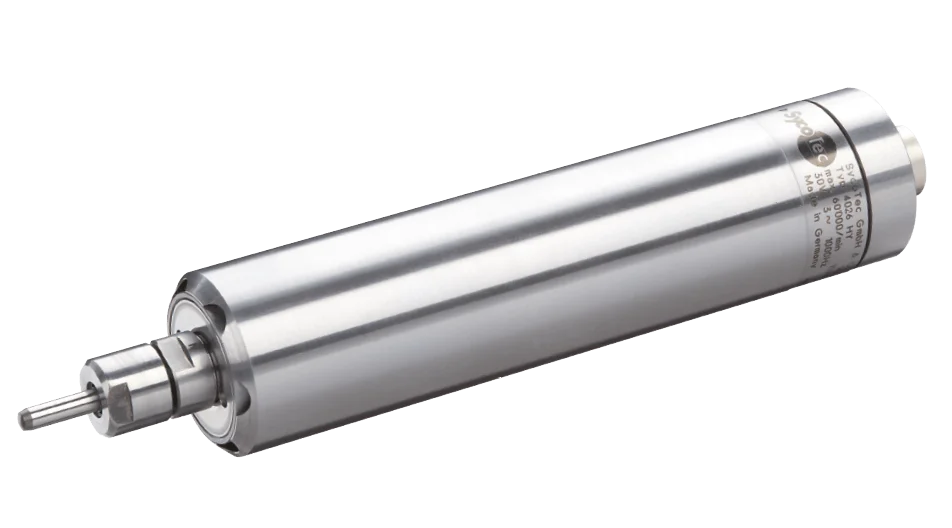

4026 AC HF Motor Spindle – 33mm, 60,000 RPM, 30V, C1-8 Collet
Vendor:
Sycotec
SKU:
6742160
Availability:
In Stock
- $2,517.84 USD
- $2,517.84 USD
- Unit price
- per
Subtotal:
$2,517.84
Estimated Delivery
Feb 11 - Feb 18
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $50
Free Returns
Authorized distributor
Products Specifications
x| Application | Drilling, milling, grinding, engraving |
|---|---|

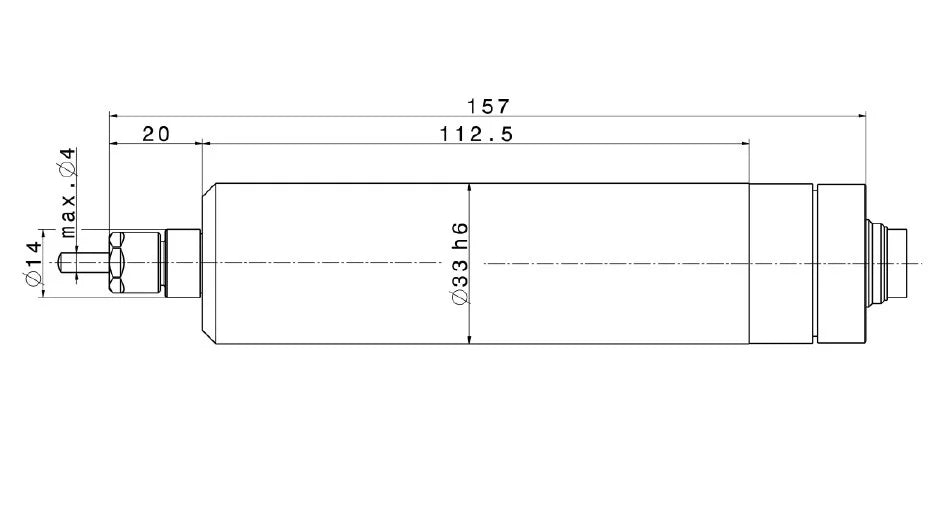

| Housing diameter | 33 mm |
| Motor type | 3-phase asynchronous motor |
| Speed range | 5,000 – 60,000 min-1 |
| Frequency | 83 – 1,000 Hz |
| Voltage | 30 V |
| Current | max. 8 A |
| Torque | S1: 4.5 Ncm, max. 4.5 Ncm |
| Power | S1: 250 W, max. 250 W |
| Motor protection | – |
| Weight | 0.7 kg |
| Bearing | 2 x hybrid, 1 x steel, lubricated for life |
| Concentricity | ≤ 1.5 µm |
| Collet range | Ø 0.5 – 4.0 mm (incl. 1/8″) |
| Collet type | C1-8 |
| Tool change | Manual (open-end wrench) |
| Cooling system | Self-cooling by fan (reduced power) / via clamping bracket |
| Protection category | IP 20 |
| Protected against dirt and cooling lubricants | No |
| Housing material | Stainless steel |
| Cable / connector type | 3PM |
| Inverter recommendation | e@syDrive 4310 (IP00) e@syDrive TV 4504 e@syDrive 4624 |
Overview
xDiscover the first-class HF motor spindle for industrial applications in CNC systems with outstanding parameters. Our high-frequency motor spindle offers precise performance, reliability and efficiency to meet the requirements of demanding manufacturing processes. Learn more about the optimal integration of this spindle into your CNC system and increase the productivity of your operation with state-of-the-art technology.
Accessories
xProduct Part
x
Document
x-
CAD
0.674.2160.stp–\t156.82 KB
-
Data sheet
DS_4026-AC_0.674.2160_2025-01.pdf–\t170.50 KB
-
Certificates
KE_Spindel_4010_4025_4026_4029_4052_7906-02.pdf–\t281.69 KB
